8-Port Gigabit PoE+ Switch with 2 GbE and 2 Gigabit SFP

Name: 8-Port Gigabit PoE+ Switch with 2 GbE and 2 Gigabit SFP, GS1010PS2 2.0
Brand: Cudy

8-Port Gigabit PoE+ Switch with 2 GbE and 2 Gigabit SFP, GS1010PS2 2.0

GS1010PS2 2.0

Produktvarianten

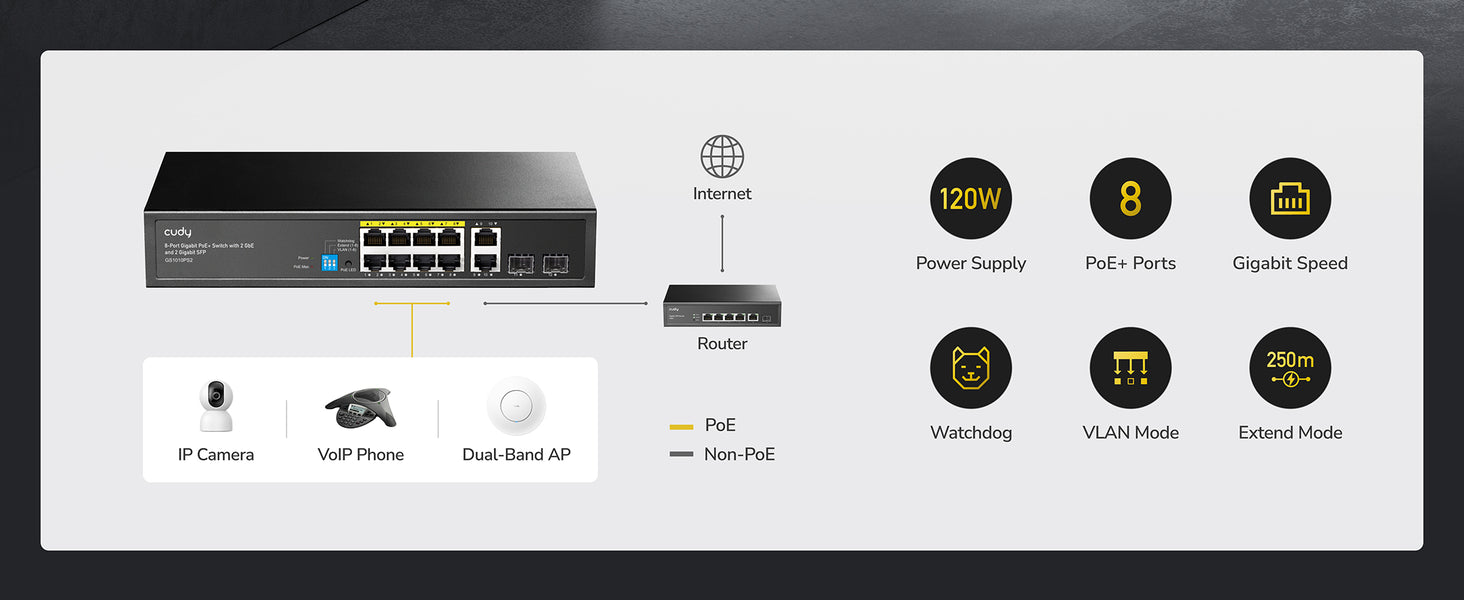

A rack-mounted Gigabit PoE switch with a 120W power supply and a silent cooling system.

8× GbE mit 802.3at/af Mode A PoE
2× Uplink GbE + 2× Uplink SFP
120-W-Netzteil
Standard-/VLAN-/Erweitert-Modi
Watchdog On/Off
PoE Max, PoE per Port LED
Desktop, Rackmontage
256×170×44 mm (10.08×6.69×1.73")

Vollständige Details anzeigen

Modellversion
Modellversion	GS1010PS2 2.0
Interfaces
Interfaces	Gigabit SFP Slots	2
	Gigabit RJ45 Ports	10
	Gigabit RJ45 PoE Ports	#1~#8
	Max Power on a Single PoE Port	30W
	PoE Port Notes	The PoE ports comply with IEEE 802.3at/af standards.
	Intelligent Power Management (PoE)	Automatically disconnect the lastly powered device when power exceeds budget.
	Extend Mode Ports	#1~#8
	VLAN Mode Ports	#1~#8
	LED	Power PoE Status of Each PoE Port Link/ACT of Each Ethernet Port
	Power Input	AC Inlet
	Physical Buttons	Extend On/Off VLAN On/Off PoE Watchdog On/Off PoE LED Toggle
	Physical Buttons Note	The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Performance
Performance	Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps
	Copper Speed and Distance Note	250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
	Optical Spec and Distance	Depends on the Installed Optical Module
	MAC Address Table	2048
	Max Switching Capacity	24 Gbps
	Max Forwarding Rate	17.856 Mpps
	Jumbo Frame	15 KB
	Packet Buffer	3 Mbit
Power
Power	Power Methods	AC
	AC	100-240V 50/60Hz
	Power Supply	120W
	Max Power Excluding PoE	10W
Switching
Switching	802.3 Protocols	802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3z 1000BASE-X 802.3x Flow Control 802.3af PoE 802.3at PoE
Reliability
Reliability	Grounding Methods	Three-Prong Plug
	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
	Environment	Operating Temperature: 0~40 ℃ (32~104 ℉) Storage Temperature: -40~70℃ (-40~158 ℉) Operating Humidity: 10~90% non-condensing Storage Humidity: 10~95% non-condensing
Mechanical
Mechanical	Dimension	256×170×44 mm 10.08×6.69×1.73 inches
	Casing Material	Metal
	Installation	Desktop Rackmount via Brackets (Brackets not included in the box)
Package Content
Package Content	GS1010PS2 Power Cord Installation Guide
