Punkt dostępowy Wi-Fi 7 BE11000 2,5G

Punkt dostępowy Wi-Fi 7 BE11000 2,5G, AP11000 1.0

AP3600 1.0

Punkt dostępowy Wi-Fi 7, do montażu na ścianie/suficie o łącznej prędkości do 10,6 Gb/s i porcie eternet o przepustowości do 2,5Gg/s, obsługujący scenariusze wrażliwe na opóźnienia, wymagające szybkości i działające na dużą skalę. Prędkości trójzakresowe wynoszą 5,7 Gb/s + 4,3 Gb/s + 688 Mb/s.


  • Broadcom 2 GHz Quad-Core CPU
  • 4-strumieniowe dwuzakresowe Wi-Fi 7
  • 2882 Mbps + 688 Mbps Wi-Fi 1
  • 1× Shielded 2.5GbE PoE IN
  • 1× Shielded GbE PoE Out 2
  • 802.3at, Passive PoE, DC
  • Watchdog, Schedule Reboot
  • Covers 120 m² (1,300 ft²) 3
  • Do 200 podłączonych urządzeń 4
Pokaż kompletne dane
Specyfikacje sprzętu
Specyfikacja oprogramowania
Wersja modelu
Wersja modelu AP3600 1.0
CPU
CPU Chipset BCM6764
CPU Details 2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 512 MB (4 Gbit) DDR3L
Wireless
Wireless 5 GHz Wi-Fi Speed 2882 Mbps
2.4 GHz Wi-Fi Speed 688 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 4× Internal
5 GHz Antenna Gain Max 5.5dBi
2.4 GHz Antenna Gain Max 5.4dBi
FEM or PA/LNA
  • 5 GHz: 2× External
  • 2.4 GHz: 2× Internal
Beamforming True
Range Performance Max: 220 m (722 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces
Interfaces 2.5G RJ45 Ports 1
Gigabit RJ45 Ports 1
Ethernet Notes Accepts PoE powering
LED System
Physical Buttons Reset Button
Power Input DC Jack, PoE via Ethernet Port
Power
Power Power Methods
  • DC
  • Passive PoE
  • 802.3at/af PoE
DC 12V 1A
Passive PoE 48 ~ 57V
Power Adapter AP3600 | DC Adapter in the box:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
AP3600_P | PoE Adapter in the box:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 48V Passive PoE
Max Power Consumption (W) 10W
Reliability
Reliability Advanced Hardware Watchdog
EMS ESD: Contact: 4kV; Air: 8kV
Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation
  • Wall-mount
  • Ceiling-mount

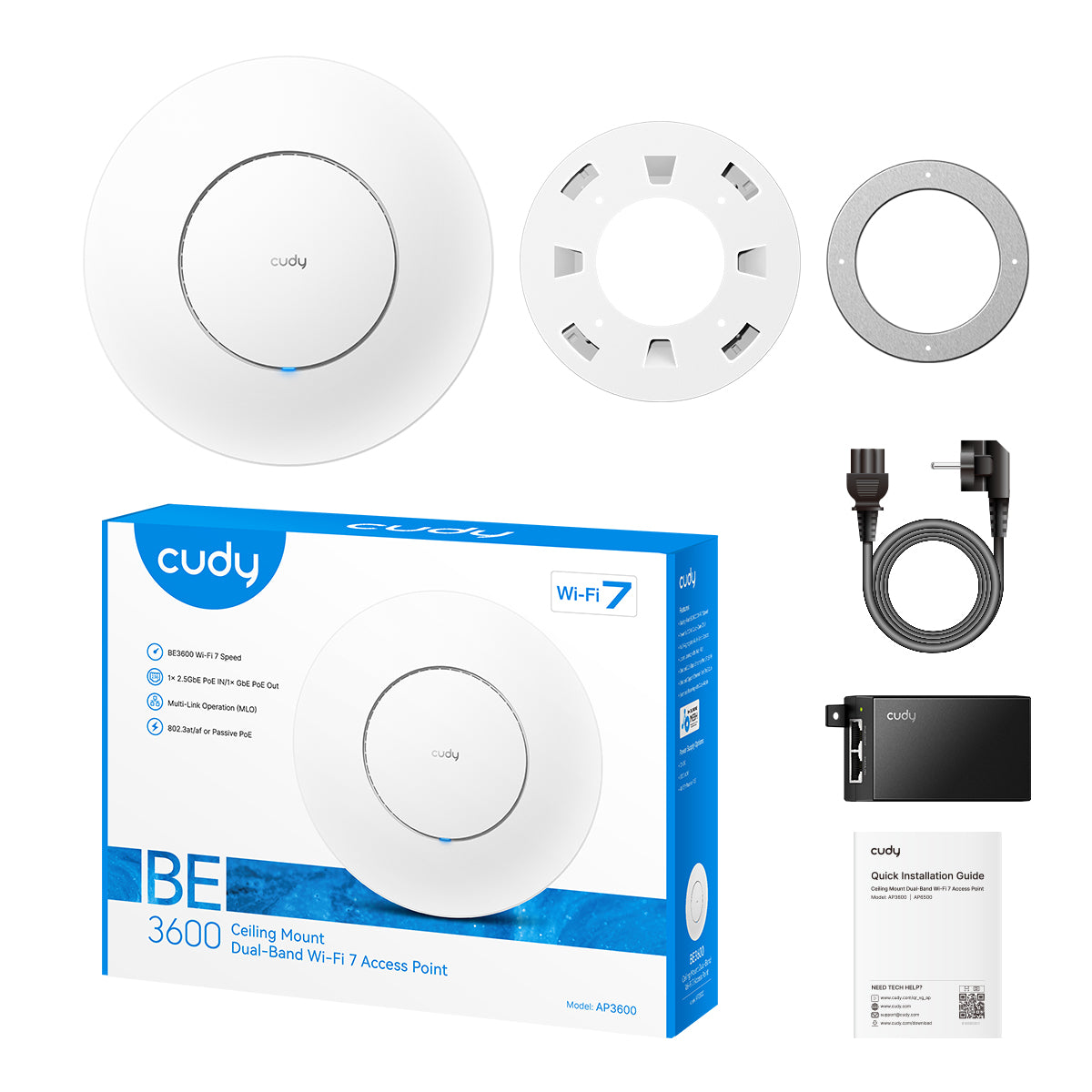

Package Content
Package Content
  • AP3600
  • Power Adapter
  • Mounting Kit
  • Ethernet Cable
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 310×238×73 mm
12.2×9.37×2.87 inches
Units per Carton 10
Carton Dimension 49.5×38.7×33.2 cm
19.49×15.24×13.07 inches
EAN-hidden-on-the-web 6971690793999
Wersja modelu
Wersja modelu AP3600 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 7
Max Wi-Fi Modulation 4K-QAM
Wi-Fi Efficiency
  • MLO
  • MRU
  • Puncturing
  • OFDMA
  • MU-MIMO
  • BSS Color
Max Capacity 512
Recommended Client Upper Limit 200
Max Wi-Fi Channel Width 160 MHz
Wi-Fi Security WPA/WPA2/WPA3
Multi-SSID (Max Number) TBD
WPS True
General
General Operation Modes
  • Wi-Fi Router
  • Access Point
Mesh Cudy Mesh
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Multi-Band Backhaul True
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
  • PPTP
  • L2TP
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
  • VoIP VLAN
  • IPTV VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities Captive Portal True
VPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Wake on LAN True
Online Detection True
Management
Management All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System LED Control True
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Dashboard
Dashboard Panel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Internet Speed
  • Wi-Fi Speed

  1. Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
  2. The PoE-Out port only provides power when the PoE-In port is plugged in 802.3at power source.
  3. The wireless coverage claim serves as a reference only. Coverage performance will vary due to environmental factors including building layout, obstacles, traffic volume and density, and device location. For optimal coverage, please place the device in a central location within the area requiring Wi-Fi.
  4. Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
