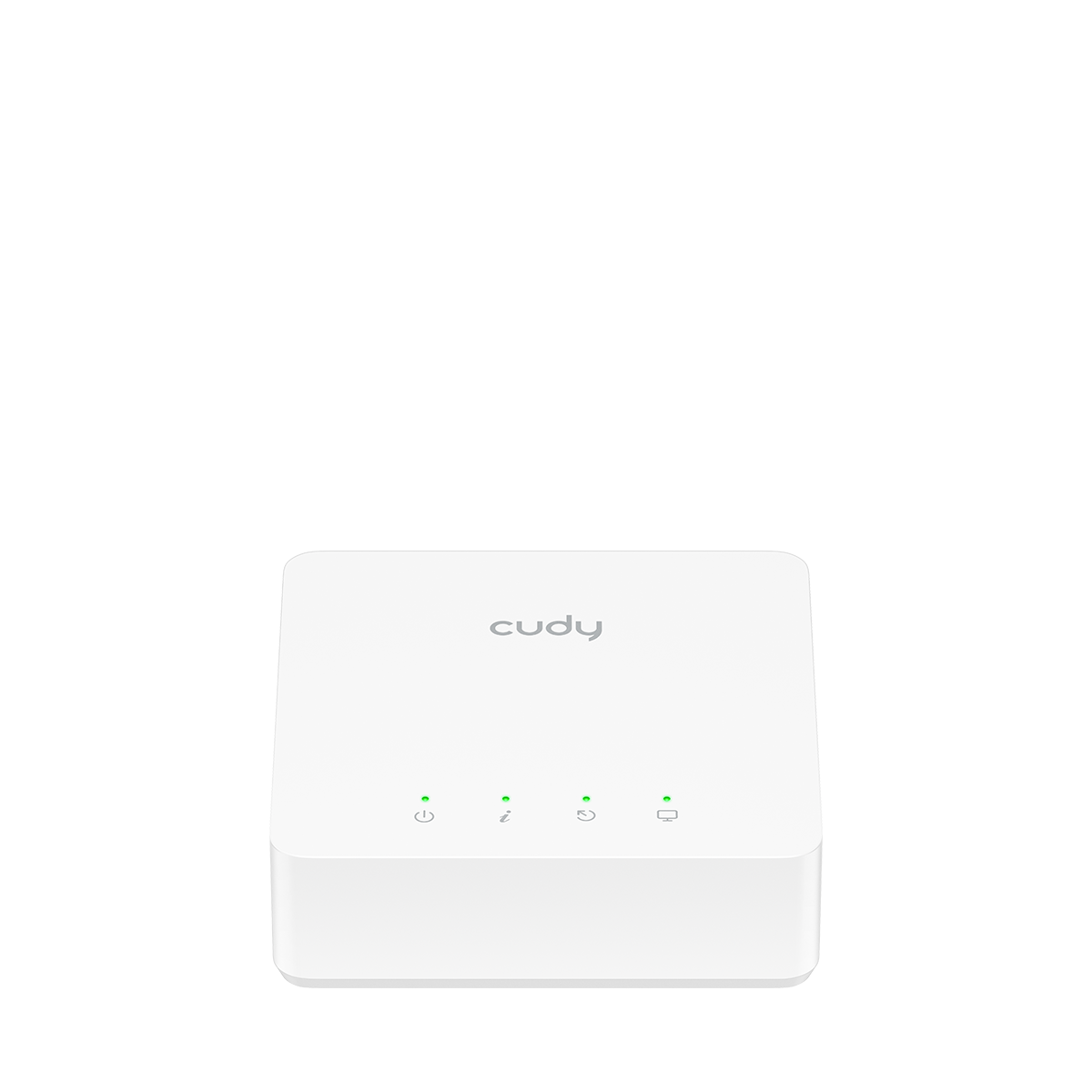

1-Port Gigabit xPON ONT

1-Port Gigabit xPON ONT, GP10 1.0

GP10 1.0

A Gigabit optical network terminal ideal for FTTH solution, featuring OAM and OMCI.


  • Max 2.48 Gbps GPON / 1.25 Gbps EPON
  • 1× SC/APC Port
  • 1× Gigabit Ethernet Port
  • OMCI/OAM
View full details
Hardware Specs
Software Specs
Model Version
Model Version GP10 1.0
CPU
CPU Chipset RTL9601D
CPU Details 300MHz Single-Core
Memory/Storage
Memory/Storage Flash/ROM 8 MB (64 Mbit ) NOR
DDR/RAM 64 MB (512 Mbit) DDR2
xPON
xPON Protocols
  • GPON (ITU G. 984 standard | Class B+)
  • EPON (802.3ah)
Speed
  • GPON: 2.488 Gbps Downstream / 1.244 Gbps Upstream
  • EPON: 1.25 Gbps Downstream / Upstream
Wavelength TX: 1310 nm
RX: 1490 nm
Max Transmission Distance 20 km

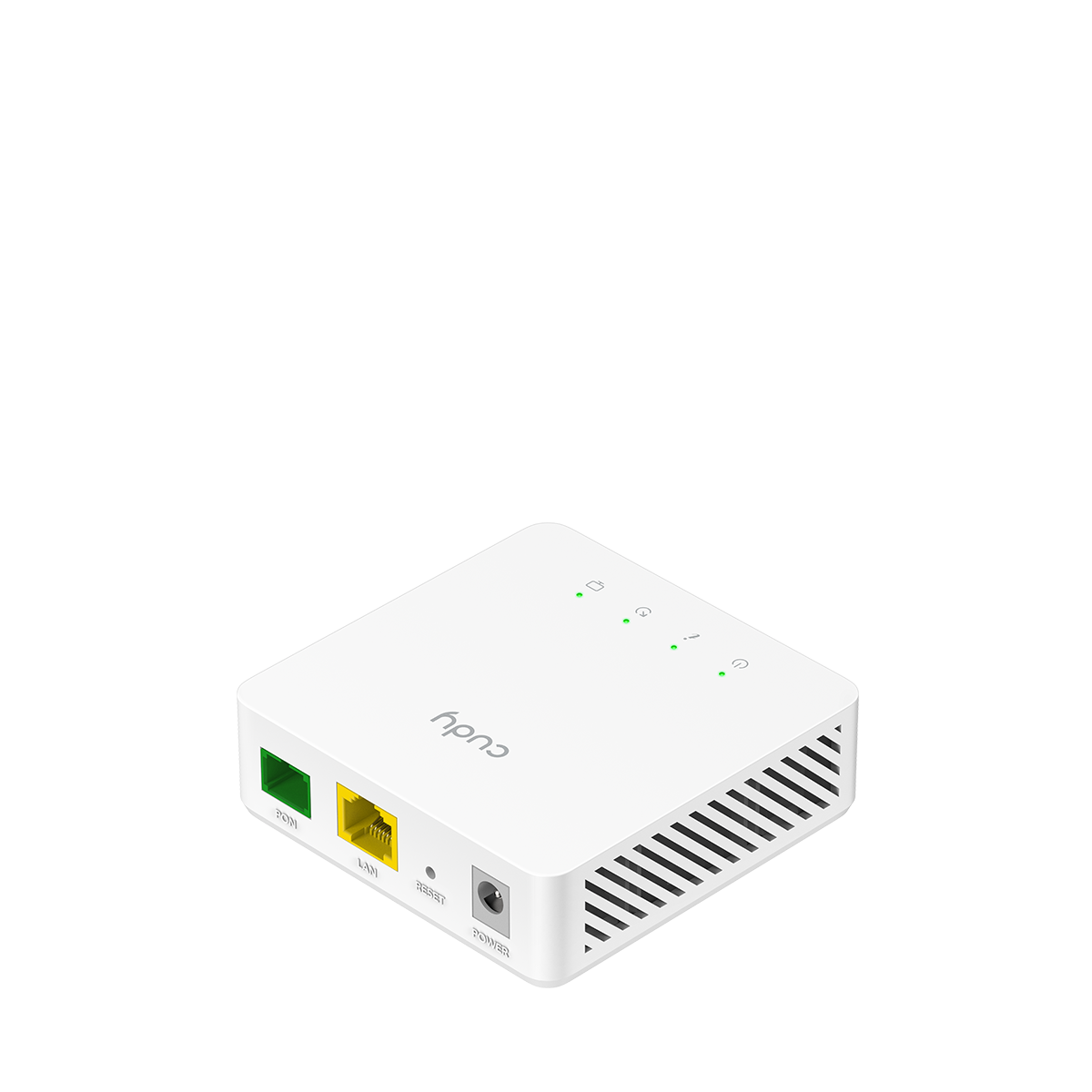

Interfaces
Interfaces SC/APC Port 1
Gigabit RJ45 Ports 1
LED
  • Power
  • PON
  • LOS
  • LAN
Physical Buttons Reset Button
Power Input DC Jack
Power
Power Power Methods DC
DC 12V 1A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Reliability
Reliability Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation
  • Desktop
  • Wall-mount
Dimension 82×82×27 mm
3.23×3.23×1.06 inches

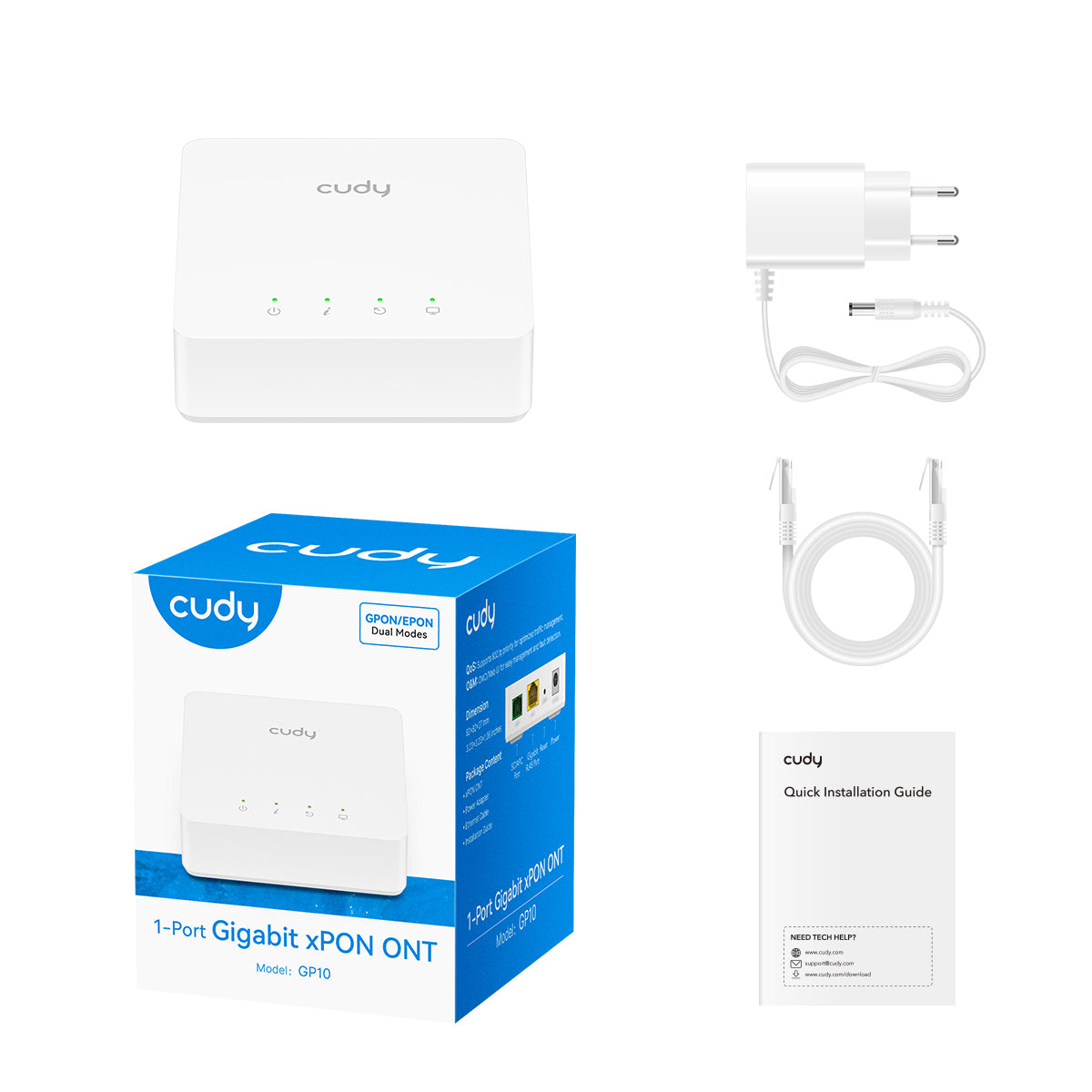

Package Content
Package Content
  • GP10
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Model Version
Model Version GP10 1.0
General
General Operation Modes
  • Router
  • Bridge
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
Network
Network QoS
  • 4 Queues
  • 802.1p Classification
  • DSCP
  • Traffic Shaping
  • By MAC
  • By IP
  • By Port
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
IPTV/VLAN
  • Bridge
  • Tag VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP IGMP Proxy
Forwarding
  • Port Forwarding
  • UPnP
  • DMZ
Firewall SPI Firewall
Utilities
Utilities DNS Options Manual DNS
Online Detection True
Management
Management All Devices Management
  • MAC Filter
  • IP/MAC Binding
Content Management
  • Domain Filter
  • IP Filter
  • Port Filter
System
System Local Control Method Config Web Page
Remote Control Method TR069/TR098/TR111/TR181
Firmware Upgrade Local Update
Reliability Backup and Restore
Languages
  • English
  • Hindi
  • Bengali
  • French
  • Portuguese
  • Russian
  • Urdu
  • Indonesian
  • German
  • Arabic
  • Spanish
  • Simplified Chinese
