PoE Switch
GS1008P
Planning
    1 0

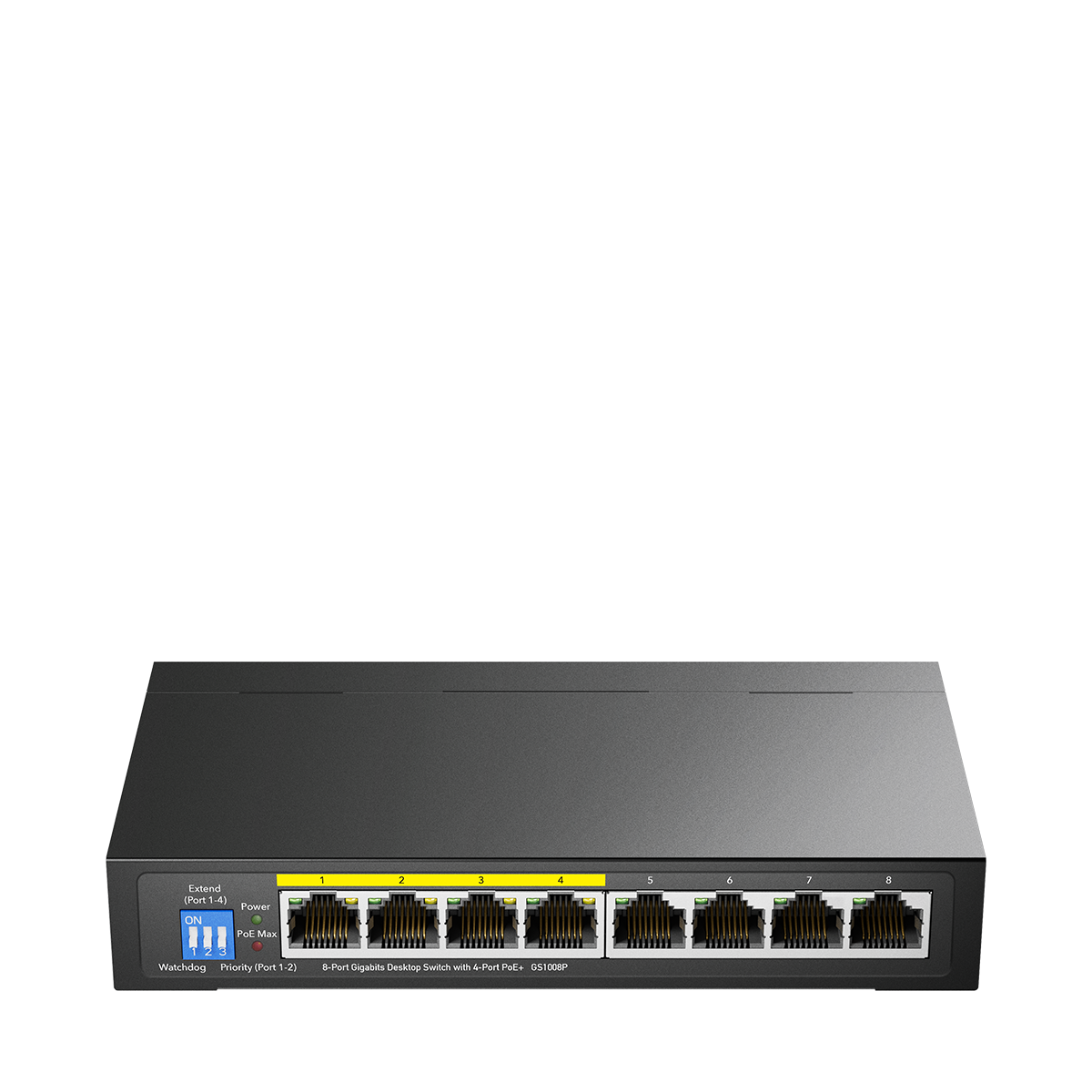

    8-Port Gigabits Desktop Switch with 4-Port PoE+

    8-Port Gigabits Desktop Switch with 4-Port PoE+, GS1008P 1.0

    GS1008P 1.0

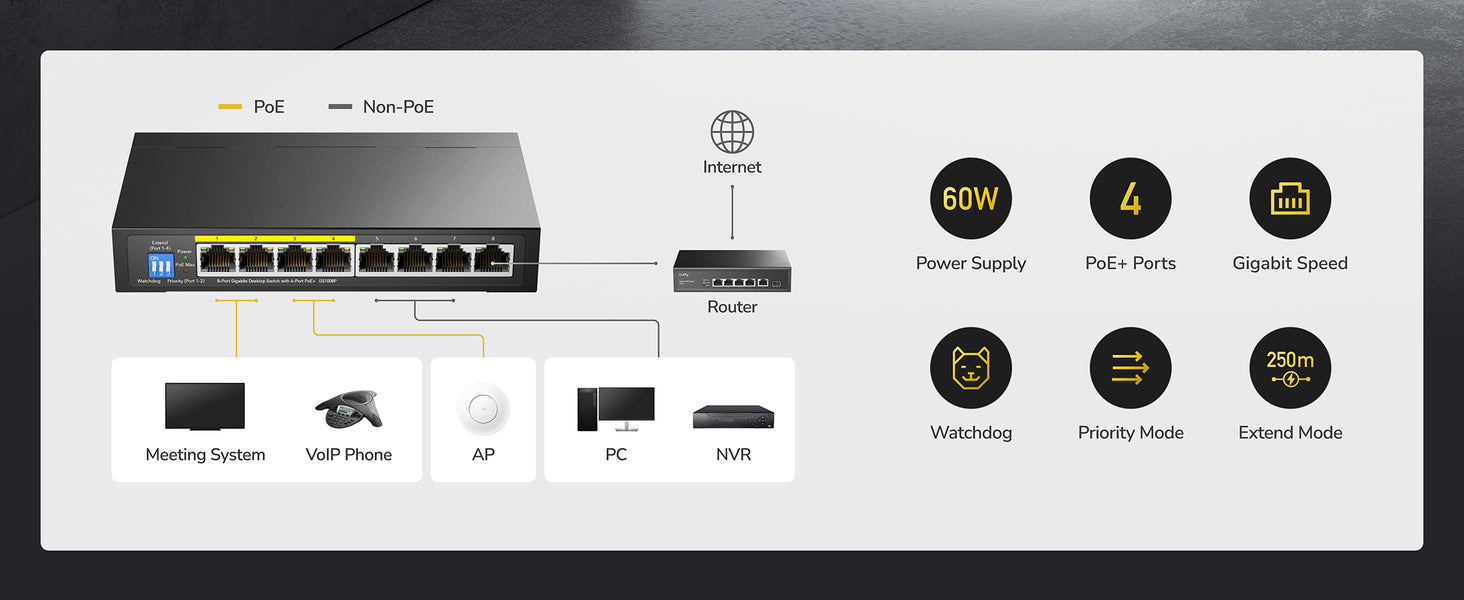

    A wall-mounted switch with a 60W power supply for PoE application and a silent cooling system, featuring priority mode, PoE extend mode, and watchdog function.

    • 4× GbE with 802.3at/af Mode A PoE
    • 4× GbE
    • 60W Power Supply
    • Priority On/Off, Extend On/Off
    • Watchdog On/Off
    • Desktop, Wall-Mount
    • 155×86×26 mm (6.1×3.39×1.02")
    View full details
    Model Version
    Model Version GS1008P 1.0
    Interfaces
    Interfaces Gigabit RJ45 Ports 4
    Gigabit RJ45 PoE Ports 4
    Max Power on a Single PoE Port 30W
    PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards. Intelligent Power Management: Automatically disconnect the lastly powered device when power exceeds budget.
    Extend Mode Ports #1~#4
    LED
    • Power
    • PoE Status of Each PoE Port
    • Link/ACT of Each Ethernet Port
    • PoE Max Status
    Power Input DC Jack
    Physical Buttons
    • Priority On/Off
    • Extend On/Off
    • PoE Watchdog On/Off
    Physical Buttons Note The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
    Performance
    Performance Copper Speed and Distance
    • Cat. 3 or higher cable: 100 meters at 10 Mbps
    • Cat. 5 or higher cable: 100 meters at 100 Mbps
    • Cat. 5e or higher cable: 100 meters at Gigabit
    • Cat. 5e or higher cable: 250 meters at 10 Mbps
    Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports.
    MAC Address Table 8192
    Max Switching Capacity 16 Gbps
    Jumbo Frame 15 KB
    Packet Buffer 4 Mbit
    Power
    Power Power Methods DC
    DC 54V 1.11A
    AC Input: 100 V - 240 V, 50 Hz
    Output: 54 V, 1.11 A
    Power Supply 60W
    Max Power Excluding PoE 5W
    Switching
    Switching 802.3 Protocols
    • 802.3i 10BASE-T
    • 802.3u 100BASE-TX
    • 802.3ab 1000BASE-T
    • 802.3x Flow Control
    • 802.3af PoE
    • 802.3at PoE
    802.1 Protocols 802.1p: LAN Layer 2 QoS/CoS
    L2 Features
    • IGMP Snooping
    • Loop Prevention
    • Loop Detection
    • DSCP QoS
    • 802.1p QoS
    Reliability
    Reliability ESD Contact: 6kV
    Air: 8kV
    Lightning/Surge Protection RJ45: CM 4kV
    Power: DM 2kV, CM 4kV
    Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
    Storage Temperature: -40~70℃ (-40~158 ℉)
    Operating Humidity: 10~90% non-condensing
    Storage Humidity: 10~95% non-condensing
    Mechanical
    Mechanical Dimension 155×86×26 mm
    6.1×3.39×1.02 inches
    Casing Material Metal
    Installation
    • Desktop
    • Wall-mount
    Package Content
    Package Content
    • GS1008P
    • Power Adapter
    • Power Cord
    • Installation Guide
    Ordering Information
    Ordering Information Carton Net Weight 14.5 kg (31.97 lbs)
    Carton Gross Weight 15.5 kg (34.17 lbs)
