Upgrade to Wi-Fi 6 for Gigabit+ Speed

Keep buffering at bay with Wi-Fi 6 standards. The advanced 1024-QAM modulation and a higher symbol rate boost the 5 GHz speed by 38%, offering super-fast download rivalling a Gigabit Ethernet wired network.

Upgrade to Wi-Fi 6 for Gigabit+ Speed

High-Capacity Wi-Fi for Smart Home

Boosted Coverage, Lower Latency

Beamforming detects the direction of connected devices and forms a focused signal towards them to improve coverage.

Easier Combos in Games

The upgraded Wi-Fi 6 standard features downlink and uplink MU-MIMO and OFDMA, multiplying the network capacity to be more responsive under heavy use.

Encrypt Your Wi-Fi to the Highest Level

The legacy WPA and WPA2 are weak under the risk of brute-force attacks. WPA3, as the latest encryption protocol, encrypts your wireless communication to the best level, protecting your data from leaking.

Encrypt Your Wi-Fi to the Highest Level

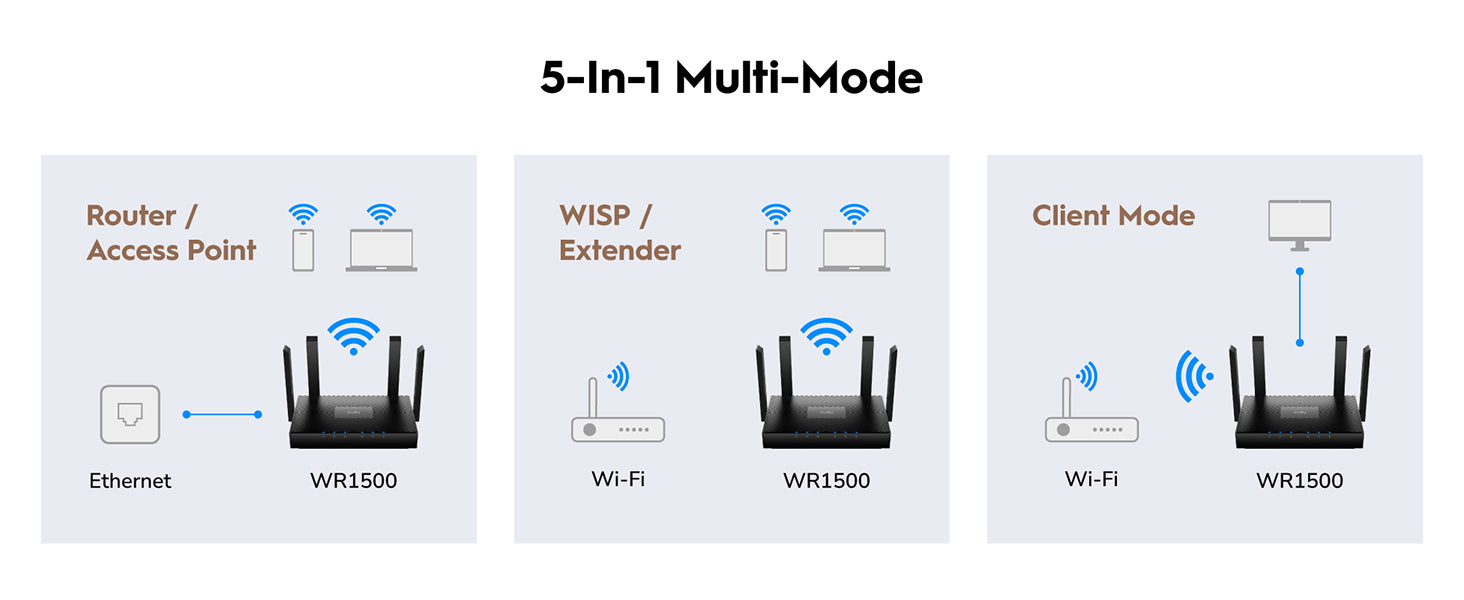

Router and AP Mode Built In

Wi-Fi Router

When Internet access from DSL or cable modem is available for one user but more users need to share the Internet, please use the Router Mode.

Wireless AP

Wireless AP mode is more used to transfer wired connection into wireless. Usually, it is behind a router and doesn't has a DHCP server.

Cudy App

Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.

‏‏‎

Learn More

Cudy App

Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.

‏‏‎

Learn More

NaN -Infinity

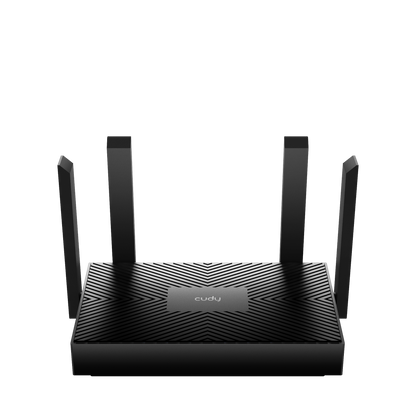

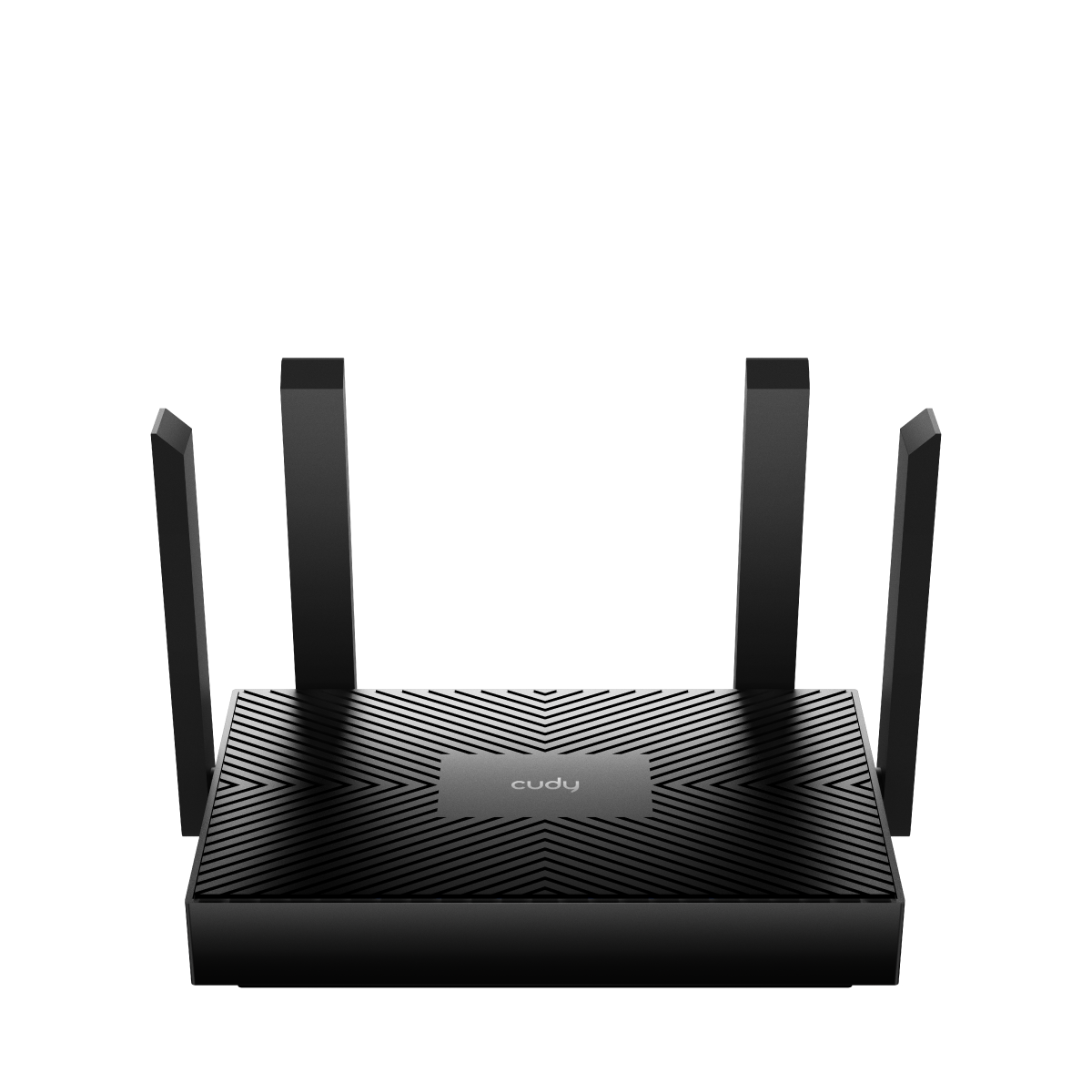

AX1500 Wi-Fi 6 Router

Name: AX1500 Wi-Fi 6 Router, WR1500 1.0
Brand: Cudy

AX1500 Wi-Fi 6 Router, WR1500 1.0

WR1500 1.0

Product variants

A Gigabit WiFi 6 router with the efficiency features of OFDMA and MU-MIMO, suitable for larger capacity scenarios.

4-Stream Dual-Band Wi-Fi 6
1201 Mbps + 300 Mbps Wi-Fi ¹
4× Gigabit Ethernet Ports
60 Connected Devices ²
Covers 100m² (1,100 ft²) ³
MU-MIMO, OFDMA, Beamforming
Cudy Mesh, VPN Client
Cudy App, Cloud Control

View full details

Hardware Specs

Software Specs

Model Version
Model Version	WR1500 1.0
CPU
CPU	Chipset	RTL8197H
	CPU Details	1 GHz CPU
Memory/Storage
Memory/Storage	Flash/ROM	16 MB (128 Mbit) NOR
	DDR/RAM	128 MB (1 Gbit) DDR2
Wireless
Wireless	5 GHz Wi-Fi Speed	1201 Mbps
	2.4 GHz Wi-Fi Speed	300 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	4× Fixed
	FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
	Beamforming	True
	Range Performance	Max: 170 m (558 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')
Interfaces
Interfaces	Gigabit RJ45 Ports	4
	Ethernet Notes	1× WAN port, the rest are LAN ports
	LED	System
	Physical Buttons	WPS Button Reset Button
	Power Input	DC Jack
Power
Power	Power Methods	DC
	DC	12V 1A
	Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
	Max Power Consumption (W)	10W
Reliability
Reliability	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications	FCC, CE
Mechanical
Mechanical	Installation	Desktop Wall-mount
	Dimension	183.3×109×35 mm 7.22×4.29×1.38 inches
	Product Weight	EU: 220 g (7.76 oz.) ZH: 224.6 g (7.92 oz.)
Package Content
Package Content	WR1500 Power Adapter Ethernet Cable Installation Guide
Ordering Information
Ordering Information	Retail Package Weight	EU: 559 g (19.72 oz.) BR: 549 g (19.37 oz.) ZH: 519.3 g (18.32 oz.)
	Retail Package Dimension	240×230×60 mm 9.45×9.06×2.36 inches
	Units per Carton	20
	Carton Dimension	49.5×32.5×48 cm 19.49×12.8×18.9 inches
	Carton Gross Weight	EU: 12.1 kg (26.68 lbs) BR: 12.1 kg (26.68 lbs) ZH: 11.4 kg (25.13 lbs)
	Carton Net Weight	EU: 11.2 kg (24.69 lbs) BR: 11.0 kg (24.25 lbs) ZH: 10.5 kg (23.15 lbs)

Model Version
Model Version	WR1500 1.0
Wireless
Wireless	Wi-Fi Standards	Wi-Fi 6
	Max Wi-Fi Modulation	1024-QAM
	Max Capacity	128
	Recommended Client Upper Limit	60
	Max Wi-Fi Channel Width	80 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	WPS	True
General
General	Operation Modes	Wi-Fi Router Access Point Range Extender WISP Client
	Mesh	Cudy Mesh
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul	True
	WAN Mode	DHCP Static IP PPPOE PPTP L2TP
	Internet Failover Sequence	WAN WISP
Network
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	IPTV/VLAN	Bridge Tag VLAN VoIP VLAN IPTV VLAN
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding UPnP DMZ
	Firewall	SPI Firewall Block PING
Utilities
Utilities	VPN Client	PPTP L2TP Wireguard
	DNS Options	Manual DNS Rebind Protection Override Clients' DNS
	Wake on LAN	True
	Online Detection	True
Management
Management	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System
System	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR181
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Portuguese Russian Spanish Ukrainian French Simplified Chinese
Dashboard
Dashboard	Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Mesh Topology Internet Speed WISP Speed Wi-Fi Speed

Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
The wireless coverage claim serves as a reference only. Coverage performance will vary due to environmental factors including building layout, obstacles, traffic volume and density, and device location. For optimal coverage, please place the device in a central location within the area requiring Wi-Fi.
