中繼器
RE3000

升級的 Wi-Fi 6 處理

強大的CPU立即傳輸數據

The new Wi-Fi 6 chip with a 4-nm made process delivers amazing powers and an impressive efficiency bump, enabling RE3000 to handle intensive transmission tasks such as online gaming streams and 4K live feed and maintain responsive.

升級的 Wi-Fi 6 處理

強大的CPU立即傳輸數據

The new Wi-Fi 6 chip with a 4-nm made process delivers amazing powers and an impressive efficiency bump, enabling RE3000 to handle intensive transmission tasks such as online gaming streams and 4K live feed and maintain responsive.

更快的 Wi-Fi 6 消除了節流

配備Wi-Fi 6，RE3000擁有最高的160 MHz 頻寬和1024-QAM，速度高達3 Gbps，比上一代AC 2x2 RE 快2.5 倍以上，這種高吞吐量允許大量資料（包括4K 視訊串流跳到終端）。

更快的 Wi-Fi 6 消除了節流

配備Wi-Fi 6，RE3000擁有最高的160 MHz 頻寬和1024-QAM，速度高達3 Gbps，比上一代AC 2x2 RE 快2.5 倍以上，這種高吞吐量允許大量資料（包括4K 視訊串流跳到終端）。

擴大覆蓋範圍，提高效率

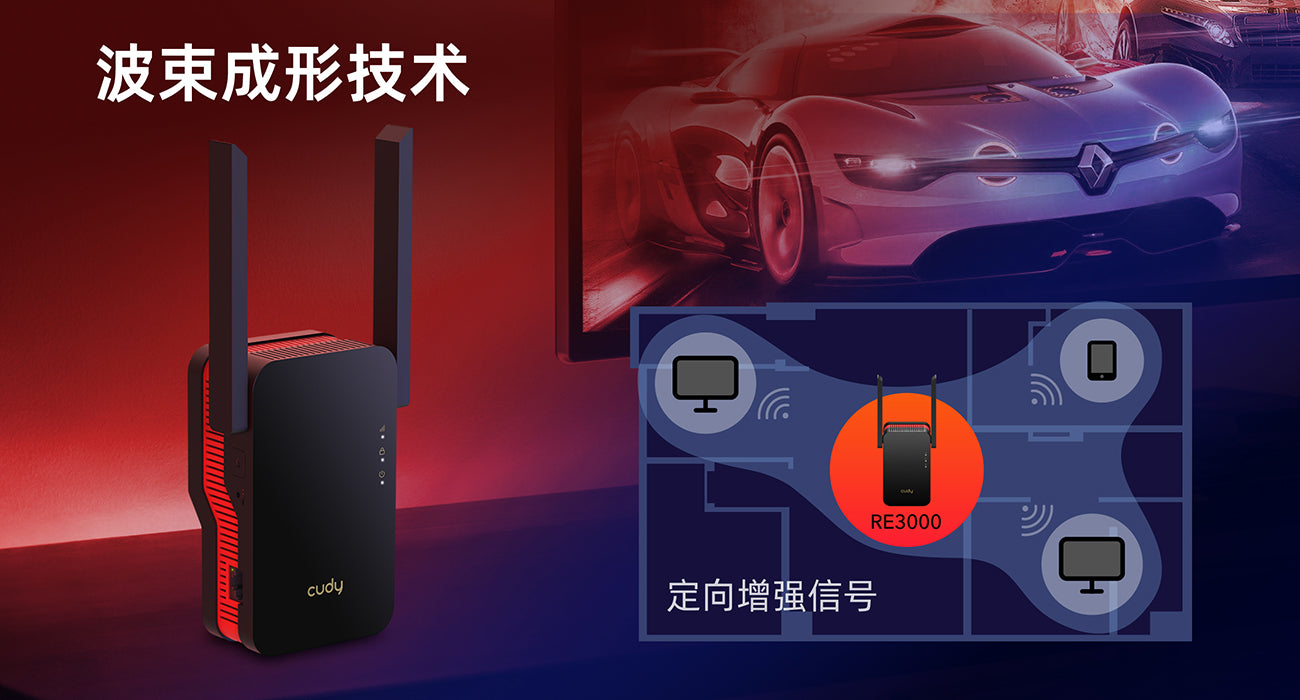

偵測到方向，增強訊號

Beamforming detects the direction of connected devices and forms a focused signal towards them to improve coverage.

連接更多，保持快速

The upgraded Wi-Fi 6 standard features downlink and uplink MU-MIMO and OFDMA, transmitting a massive amount of data for multiple devices in no time. This reduces the latency and enhances Wi-Fi capacity, enabling more immersive online gaming and smoother video calling.

透過有線連接共享互聯網

A Gigabit Ethernet provides 10x the speed of the ordinary non-gigabit one. This enables turning existing wired connections into a Wi-Fi hotspot. You can also use it as a LAN port to share internet through wired connection to TV in your bedroom or printer which lacks Wi-Fi module.

透過有線連接共享互聯網

A Gigabit Ethernet provides 10x the speed of the ordinary non-gigabit one. This enables turning existing wired connections into a Wi-Fi hotspot. You can also use it as a LAN port to share internet through wired connection to TV in your bedroom or printer which lacks Wi-Fi module.

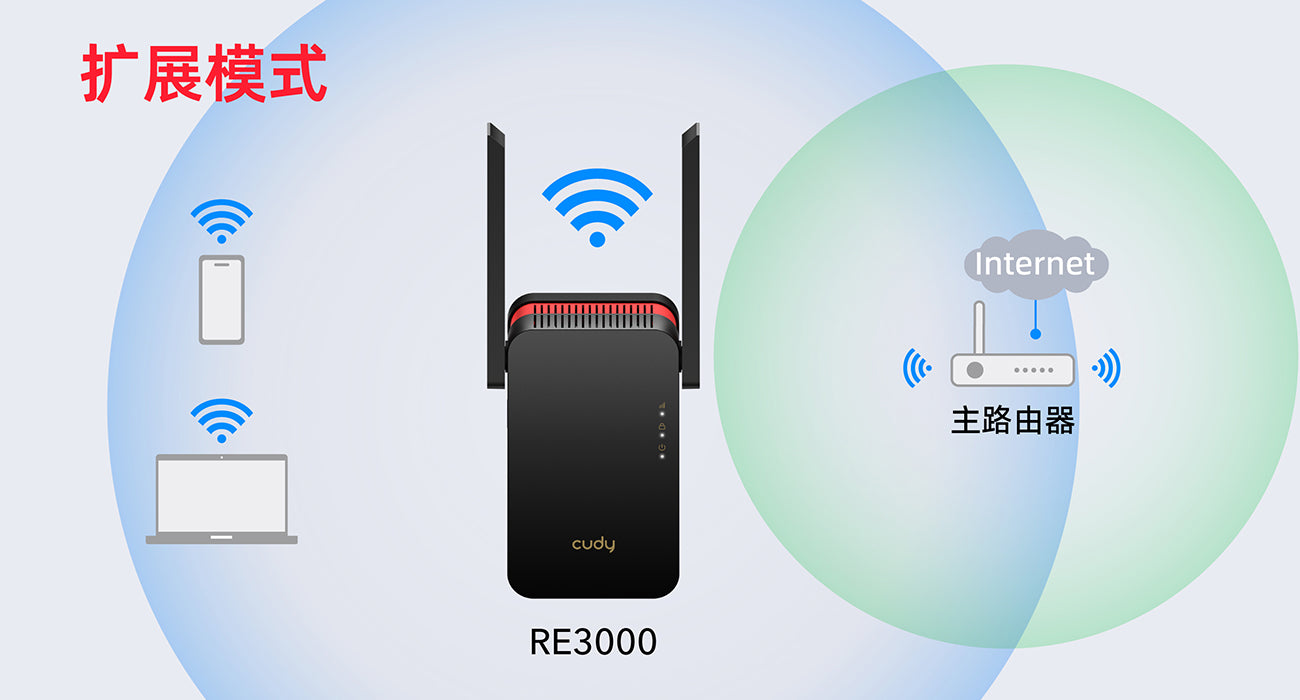

增強或建立 Wi-Fi 由您決定

增強 Wi-Fi 和共享以太網

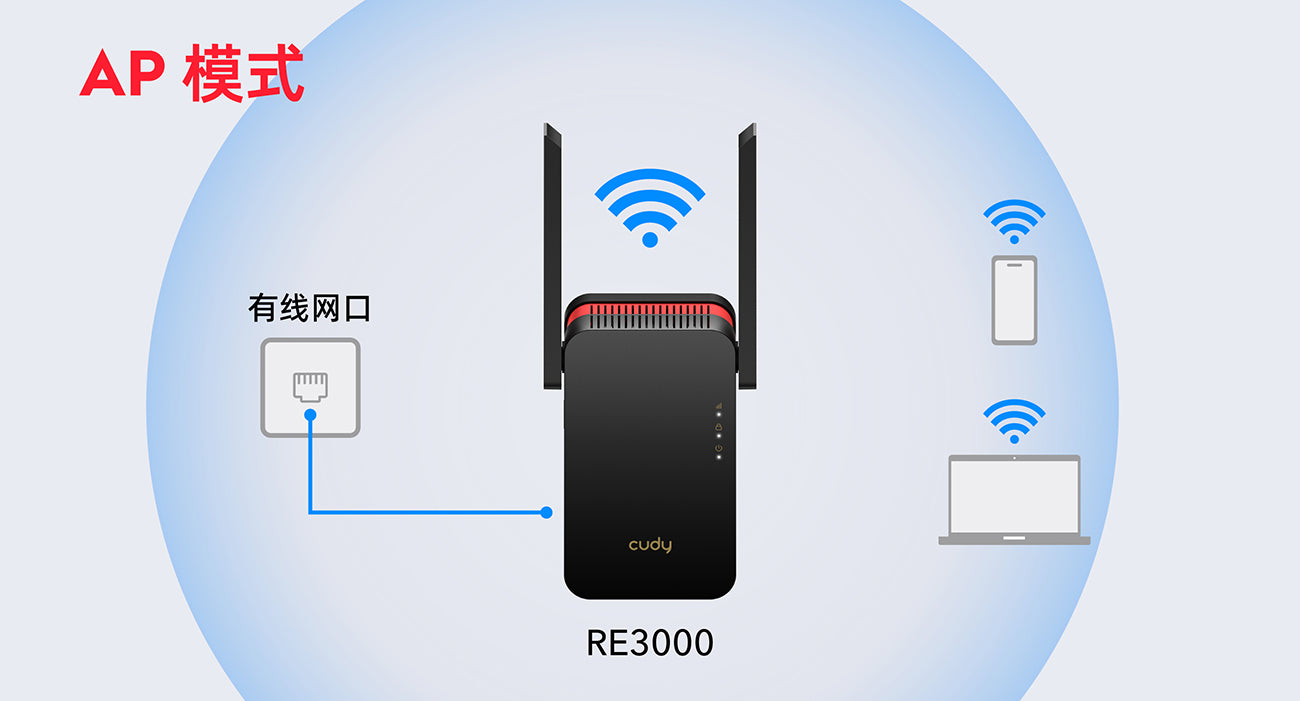

將現有有線連線轉變為 Wi-Fi

將無線加密至最佳級別

The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.

將無線加密至最佳級別

The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.

Cudy App

Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.

‏‏‎

Learn More

Cudy App

Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.

‏‏‎

Learn More

1 6

AX3000 網狀 Wi-Fi 6 範圍擴展器，RE3000 1.0

AX3000 網狀 Wi-Fi 6 範圍擴展器，RE3000 1.0

RE3000 1.0

範圍擴展器，具有高容量 AX3000 WiFi 6 和Gigabit乙太網路連接埠。按下 WPS 按鈕即可立即擴充現有 Wi-Fi。

  • 適用於任何 Wi-Fi 路由器
  • 雙頻 Wi-Fi 6
  • 1× 千兆乙太網路埠
  • 50 個連接設備 1
  • Cudy 網狀衛星
  • 多頻段同時回程
  • 乙太網路回程
查看完整資訊
硬體規格
軟體規格
型號版本
型號版本 RE3000 1.0
CPU
CPU Chipset MT7981BA+MT7976CN
CPU Details 1.3 GHz Dual-Core, ARM Cortex-A53
Memory/Storage
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 256 MB (2 Gbit) DDR3
Wireless
Wireless 5 GHz Wi-Fi Speed 2402 Mbps
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 3T3R (3×3 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Fixed, 1 × Internal
2.4 GHz Antenna Gain Max 2.1dBi
5 GHz Antenna Gain Max 3.9dBi
FEM or PA/LNA
  • 5 GHz: 3× Internal
  • 2.4 GHz: 2× Internal
Range Performance Max: 150 m (492 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance One wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
Interfaces
Interfaces Gigabit RJ45 Ports 1
LED
  • Signal Strength
  • WPS
  • Power
Physical Buttons
  • WPS Button
  • Reset Button
Power Input AC Plug
Power Input Note EU, US, UK Plug are Available
Power
Power Power Methods AC
AC 100V ~ 240V
Reliability
Reliability Environment Operating Temperature: 0 ℃ ~ 50 ℃ (32 ℉ ~ 122 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Grounding Methods Three-Prong Plug
Certifications
Certifications FCC, CE
Mechanical
Mechanical Install in a Daisy Chain Recommend to install less than 3 repeaters in a wireless chain.
Installation Plug-In-Socket
Casing Material Plastic
Dimension 129.6×80×48.6 mm
5.1×3.15×1.91 inches
Product Weight
  • EU: 279 g (9.84 oz.)
  • UK: 282 g (9.95 oz.)
  • US: 276 g (9.74 oz.)
Package Content
Package Content
  • RE3000
  • Installation Guide
Ordering Information
Ordering Information Retail Package Weight
  • EU: 417 g (14.71 oz.)
  • UK: 405 g (14.29 oz.)
  • US: 422 g (14.89 oz.)
Retail Package Dimension 161×120×96 mm
6.34×4.72×3.78 inches
Units per Carton 30
Carton Net Weight
  • EU: 12.5 kg (27.56 lbs)
  • UK: 12.1 kg (26.68 lbs)
  • US: 12.7 kg (28 lbs)
Carton Gross Weight
  • EU: 13.3 kg (29.32 lbs)
  • UK: 13.1 kg (28.88 lbs)
  • US: 13.2 kg (29.1 lbs)
Carton Dimension 50.4×37.7×34.1 cm
19.84×14.84×13.43 inches
型號版本
型號版本 RE3000 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 6
Max Wi-Fi Modulation 1024-QAM
Wi-Fi Efficiency
  • OFDMA
  • MU-MIMO
  • BSS Color
Max Capacity 512
Recommended Client Upper Limit 50
Max Wi-Fi Channel Width 160 MHz
Wi-Fi Security WPA/WPA2/WPA3
WPS True
General
General Operation Modes
  • Access Point
  • Range Extender
Mesh Cudy Mesh Satellite
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Multi-Band Backhaul true
System
System LED Control ture
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method App Control
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Dashboard
Dashboard Panel
  • Connected Devices
  • Host Network Status
  • Wi-Fi Status
  • LAN Status
  • System Version
System
System Diagnostic Tools
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Dashboard
Dashboard Charts Mesh Topology
General
General Internet Failover Sequence
  • Wired
  • Wireless
  1. 多個設備的實際性能可能會受到所使用的應用程式類型、總可用頻寬和設備功能的影響。連接較舊的 Wi-Fi 設備（舊標準）可能會降低整體效率。使用效率功能需要也支援這些功能的相容客戶端設備。在規格電子表格的軟體部分中尋找有關支援的效率功能的更多資訊。
