Chargeurs
CH70
1 1

Chargeur GaN 4 ports 65 W

Chargeur GaN 4 ports 65 W, CH70 1.0

CH70 1.0

Un chargeur de 65 W avec trois ports USB-C et un USB-A pour charger plusieurs appareils mobiles simultanément.

  • Chargement 3 × USB-C et 1 × USB-A
  • USB-C maximum de 65 W
  • USB-A maximum 30 W
  • PD 3.0, PPS, QC 3.0 Charge rapide
  • Technologie GaN
  • For Laptops, Tablets, and Phones
Afficher tous les détails
Version du modèle
Version du modèle CH70 1.0
Charging
Charging Ports 3× USB-C, 1× USB-A
Power 65W
Multi-Port Power Allocation
  • USB-C1/C2:
    PPS:5.0-11.0V=4.5A 49.5W Max
    PD:5.0V=3.0A 15.0W / 9.0V=3.0A 27.0W / 10.0V=2.0A 20.0W / 12.0V=3.0A 36.0W / 15.0V=3.0A 45.0W / 20.0V=3.25A 65.0W Max
  • USB-C3:
    PPS:5.0-16.0V=3.0A 48.0W Max
    PD:5.0V=3.0A 15.0W / 9.0V=3.0A 27.0W / 10.0V=2.0A 20.0W / 12.0V=3.0A 36.0W / 15.0V=3.0A 45.0W / 20.0V=3.25A 65.0W Max
  • USB-A:5.0V=3.0A 15.0W / 9.0V=3.0A 27.0W / 12.0V=2.5A 30.0W Max
  • USB-C1+USB-C2/C3:45.0W+20.0W
  • USB-C2+USB-C3:45.0W+20.0W
  • USB-C1/C2+USB-A:45.0W+18.0W
  • USB-C3+USB-A: 5.0V=3.0A 15.0W Max
  • USB-C1/C2+(USB-C3+USB-A):45.0W+15.0W
  • USB-C1+USB-C2+USB-C3: 20W+20.0W+20.0W
  • USB-C1+USB-C2+USB-A: 20.0W+20.0W+18.0W
  • USB-C1+USB-C2+(USB-C3+USB-A):20.0W+20.0W+15.0W
Protocols QC 3.0, PD 3.0, PPS
Transistor Type GaN
Compatibility Phones, tablets, and laptops that accepts USB-C or USB-A Charging, including devices from Apple, Samsung, Lenovo, HP, ASUS, Dell, ROG, Motorola, Google, OnePlus, Xiaomi, OPPO, VIVO, Realme, Nokia, Sony, Huawei, TECNO, itel, Infinix
AC Input 100-240V~ 50/60Hz 1.5A
Reliability
Reliability Protection
  • Overheat Protection
  • Overvoltage Protection
  • Short Circuit Protection
Charging Port In/Out Test USB-C: In/Out >10000 times
USB-A: In/Out > 5000 times
Environment Operating Temperature: -10 ℃ ~ 25 ℃ (14 ℉ ~ 77 ℉)
Storage Temperature: -20 ℃ ~ 70 ℃ (-4 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
Electrical Standards IEC62368, IEC55032, IEC55035
Mechanical
Mechanical Dimension Main Part:
53×30.4×57.5 mm
2.09×1.2×2.26 inches
Plug Length:
37.5 mm
1.48 inches
Product Weight 120 g (4.23 oz.)

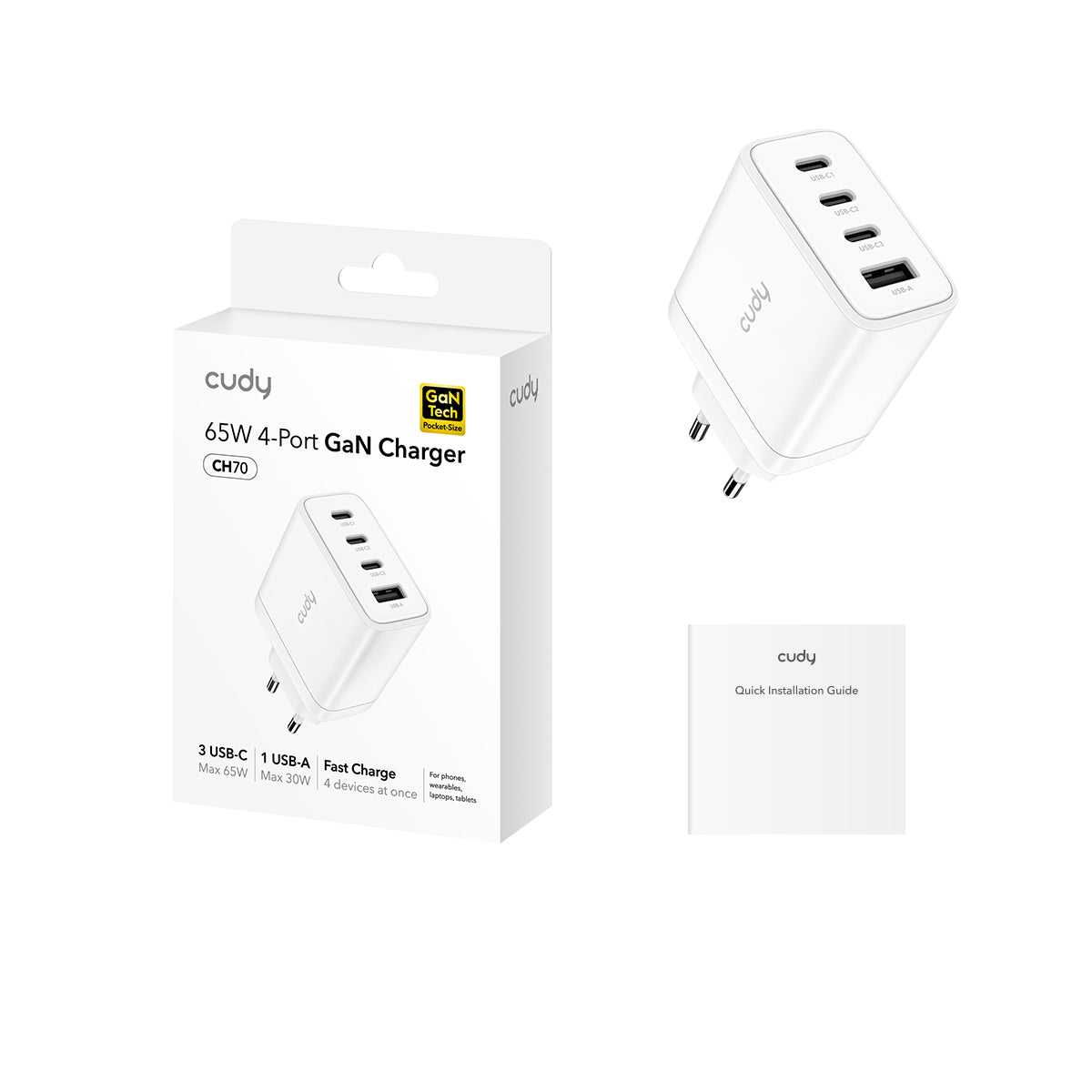

Package Content
Package Content
  • Main Product
  • Safety Guide
