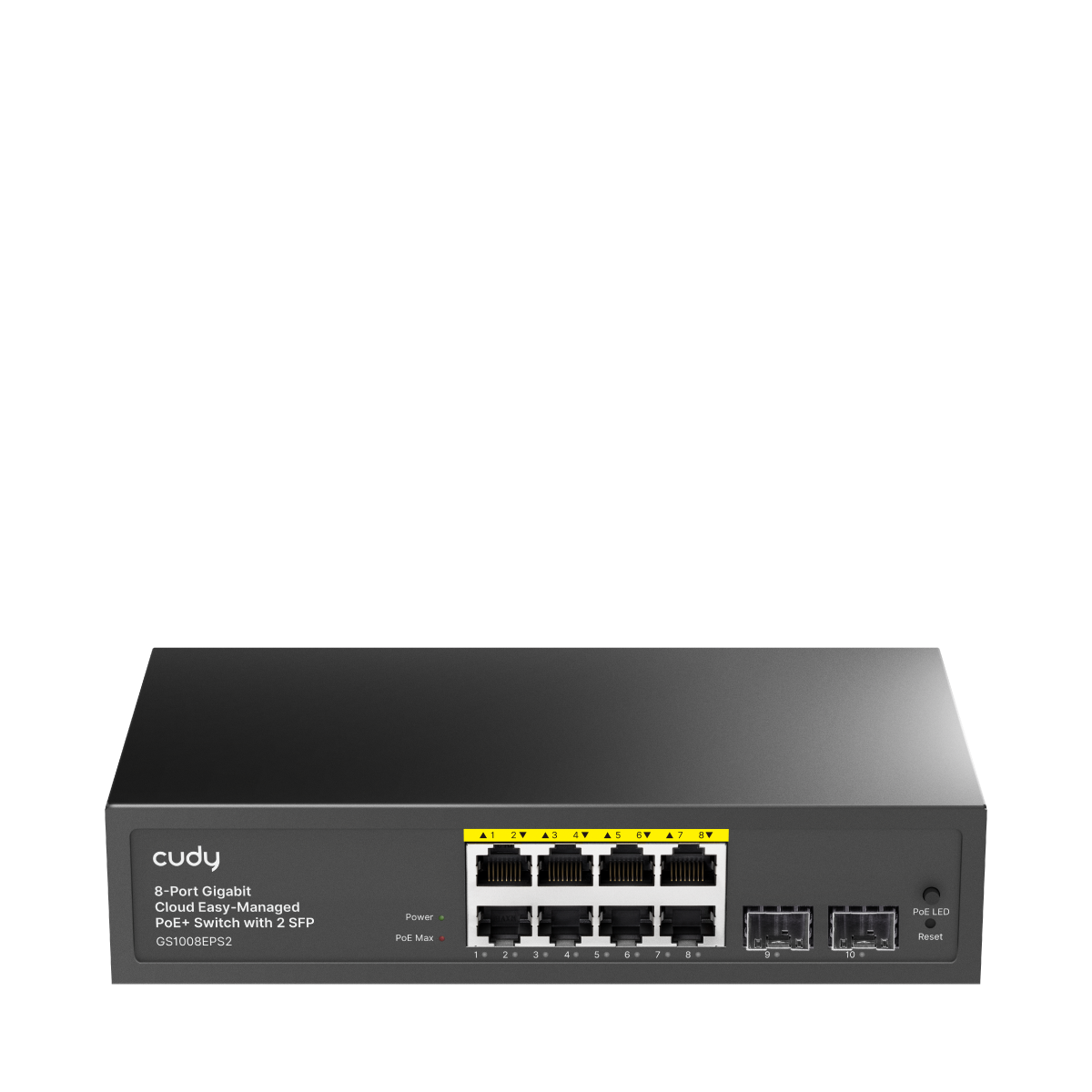

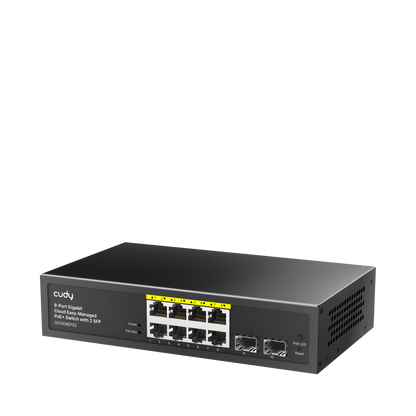

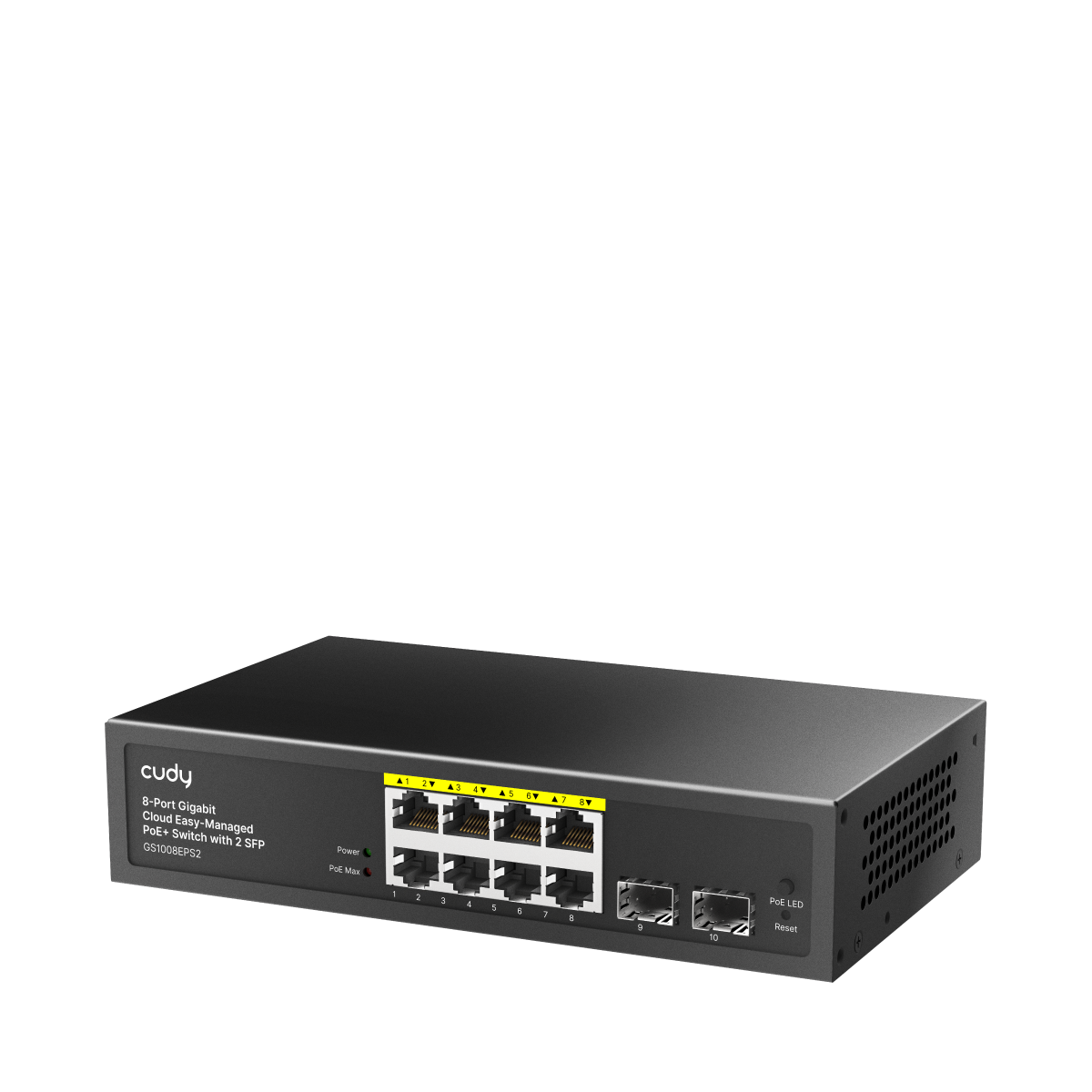

8-Port Gigabit Light-Managed PoE+ Switch with 2 Gigabit SFP

Name: 8-Port Gigabit Light-Managed PoE+ Switch with 2 Gigabit SFP, GS1008EPS2 1.0
Brand: Cudy

8-Port Gigabit Light-Managed PoE+ Switch with 2 Gigabit SFP, GS1008EPS2 1.0

GS1008EPS2 1.0

Product variants

A 8-GbE and 2-SFP switch with 120W power supply and management features.

8× GbE with 802.3at/af Mode A PoE
2× Gigabit SFP
120W Power Supply
PoE Max Status LED
Web Management, SNMP
VLAN (802.1Q/MTU/Voice/Port-Based)
QoS (802.1p/DSCP/Port-Based)
Port Mirror, Static Aggregation, etc
STP/RSTP and Loop Prevention
DHCP Snooping, IGMP Snooping
EEE (802.3az Power Saving)
256×170×44 mm (10.08×6.69×1.73")

View full details

Model Version
Model Version	GS1008EPS2 1.0
Memory/Storage
Memory/Storage	Flash/ROM	8 MB (64 Mbit ) NOR
Interfaces
Interfaces	1.25G SFP Slots	2
	Gigabit RJ45 Ports	8
	Gigabit RJ45 PoE Ports	#1~#8
	Max Power on a Single PoE Port	30W
	PoE Port Notes	The PoE ports comply with IEEE 802.3at/af standards.
	Intelligent Power Management (PoE)	Automatically disconnect the lastly powered device when power exceeds budget.
	LED	Power Link/ACT of Each Ethernet Port PoE Max Status
	Power Input	AC Inlet
	Physical Buttons	Reset Button
Performance
Performance	Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps
	Copper Speed and Distance Note	250-meter transmission is available when the port speed is set at 10 Mbps in the software.
	Optical Spec and Distance	Depends on the Installed Optical Module
	MAC Address Table	8192
	VLANs	4096
	Max Switching Capacity	20 Gbps
	Max Forwarding Rate	14.88 Mpps
	Jumbo Frame	15 KB
	Packet Buffer	4 Mbit
Power
Power	Power Methods	AC
	AC	100-240V~, 50/60Hz
	Power Supply	120W
	Max Power Excluding PoE	10W
Switching
Switching	802.3 Protocols	802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3z 1000BASE-X 802.3az Power Saving 802.3at PoE 802.3af PoE
	802.1 Protocols	802.1d: STP 802.1w: RSTP 802.1p: LAN Layer 2 QoS/CoS 802.1q: VLAN Bridge Operation 802.1ab: LLDP/LLDP-MED
	Port Management	PoE Priority PoE Watchdog On/Off Port On/Off Port Negotiation Speed Port Trunk (Static Aggregation) Port Mirror Data Rate Limit Jumbo Frame Settings Storm Control Traffic Monitor MAC Address Management EEE (802.3az)
	Port Trunk Groups	4
	Max Port per Port Trunk Groups	8
	L2 Features	IGMP Snooping Loop Prevention DHCP Snooping STP/RSTP LLDP Config and Neighbors MTU VLAN Port-Based VLAN 802.1Q VLAN Voice VLAN DSCP QoS 802.1p QoS Port-Based QoS
Reliability
Reliability	Grounding Methods	Three-Prong Plug
	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
System
System	Control Methods	Config Web Page SNMP V1/V2
	Firmware Upgrade	Local Upgrade
	Reliability	Backup and Restore
	Diagnostic Tools	Cable Status/Length Diagnosis Ping
	Languages	English Bengali German Spanish French Portuguese Russian Arabic Indonesian Hindi Urdu Traditional Chinese Simplified Chinese
Mechanical
Mechanical	Dimension	256×170×44 mm 10.08×6.69×1.73 inches
	Casing Material	Metal
	Installation	Desktop Rackmount via Brackets (Brackets not included in the box)
Package Content
Package Content	GS1008EPS2 Power Adapter Power Cord Installation Guide
