5G SA/NSA AX3000 Wi-Fi 6 路由器 带电话口

5G SA/NSA AX3000 Wi-Fi 6 路由器 带电话口, P2 1.0

P2 1.0

5G WiFi 6 路由器，其蜂窝下行速率高达 2.6 Gbps。配Nano SIM 卡槽，配合AX3000 WiFi 6，插卡即上网，另通过一个RJ11口支持连接电话实现 VoNR/VoLTE 高清语音通话。



  • 5G 版本15 个,最大 2.6 Gbps DL
  • 双向四载波聚合，4×4 MIMO
  • 4数据流双频Wi-Fi 6
  • 2402 Mbps + 574 Mbps 无线速率 1

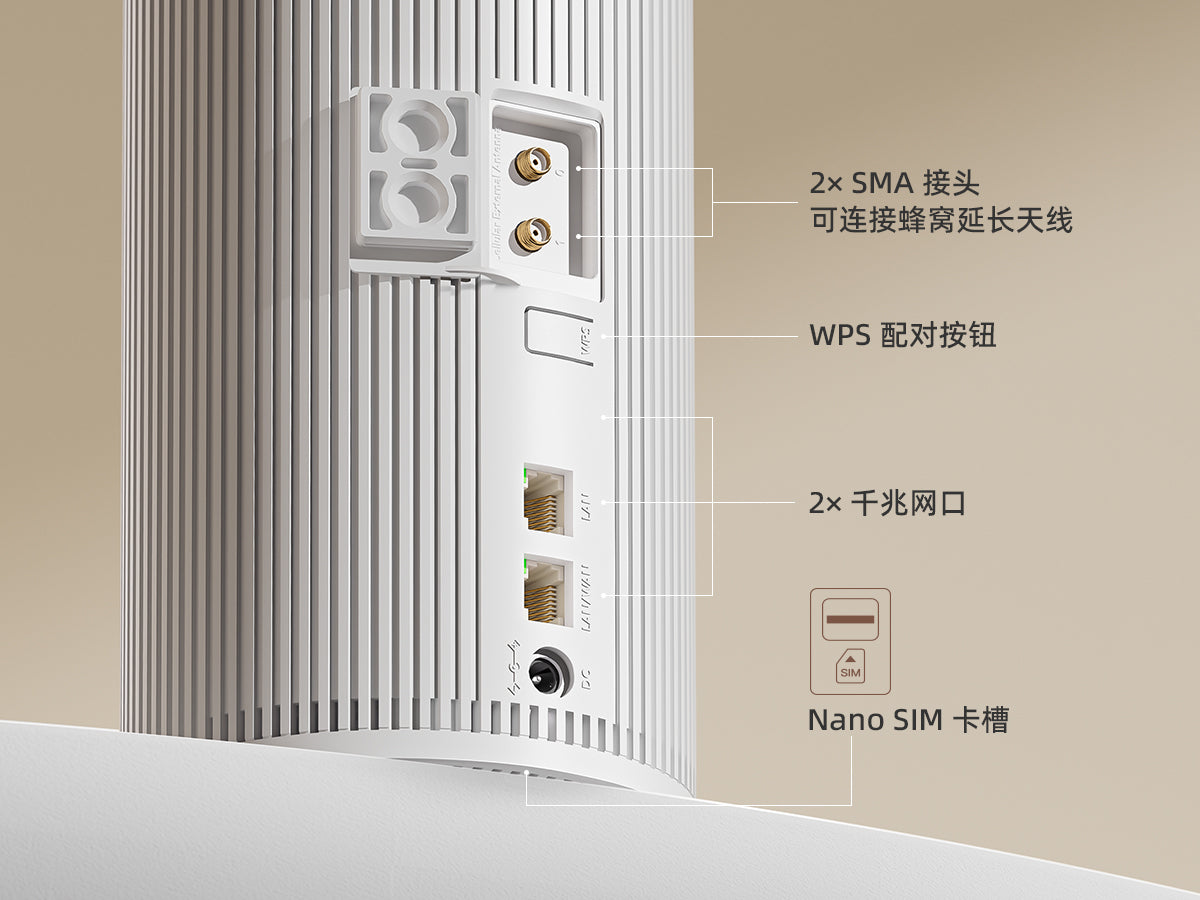

  • 2× 千兆口 和 1× RJ11 电话口
  • 1× Nano SIM 插槽

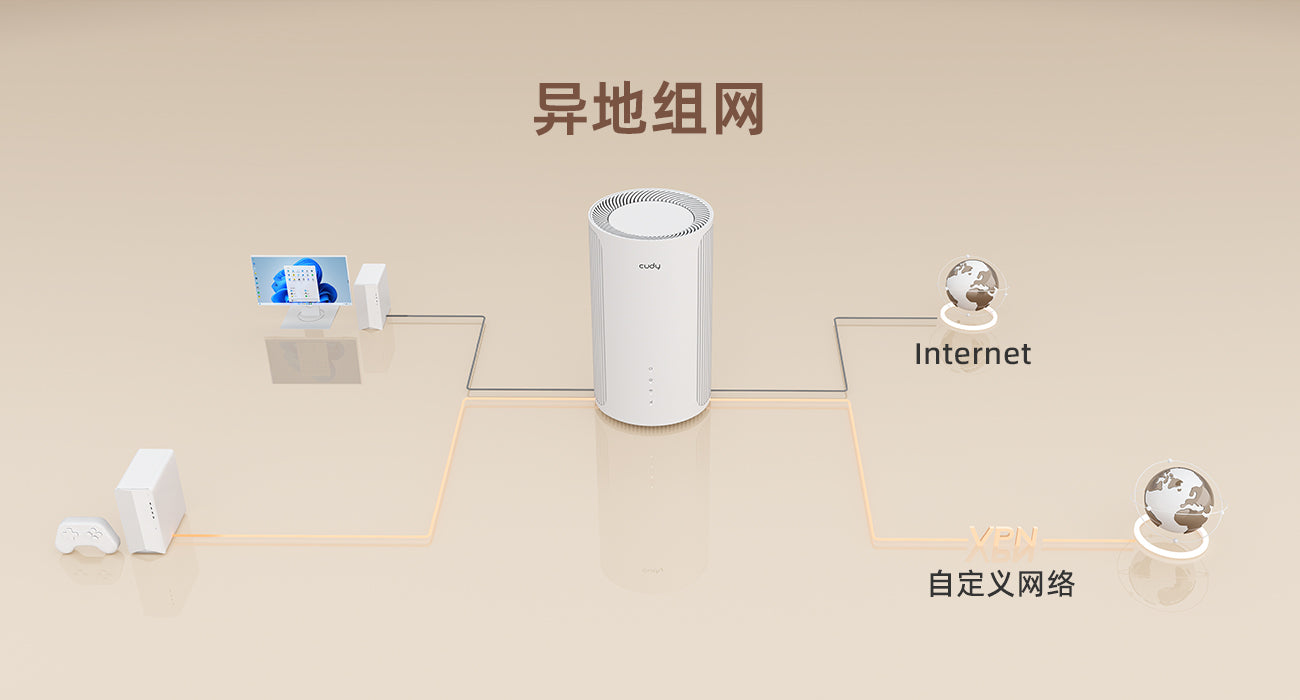

  • Cudy Mesh 全屋覆盖组网，异地组网
  • Cudy App, 云控制
查看完整详细信息
硬件参数
软件参数
型号版本
型号版本 P2 1.0
CPU
CPU Chipset MT7981

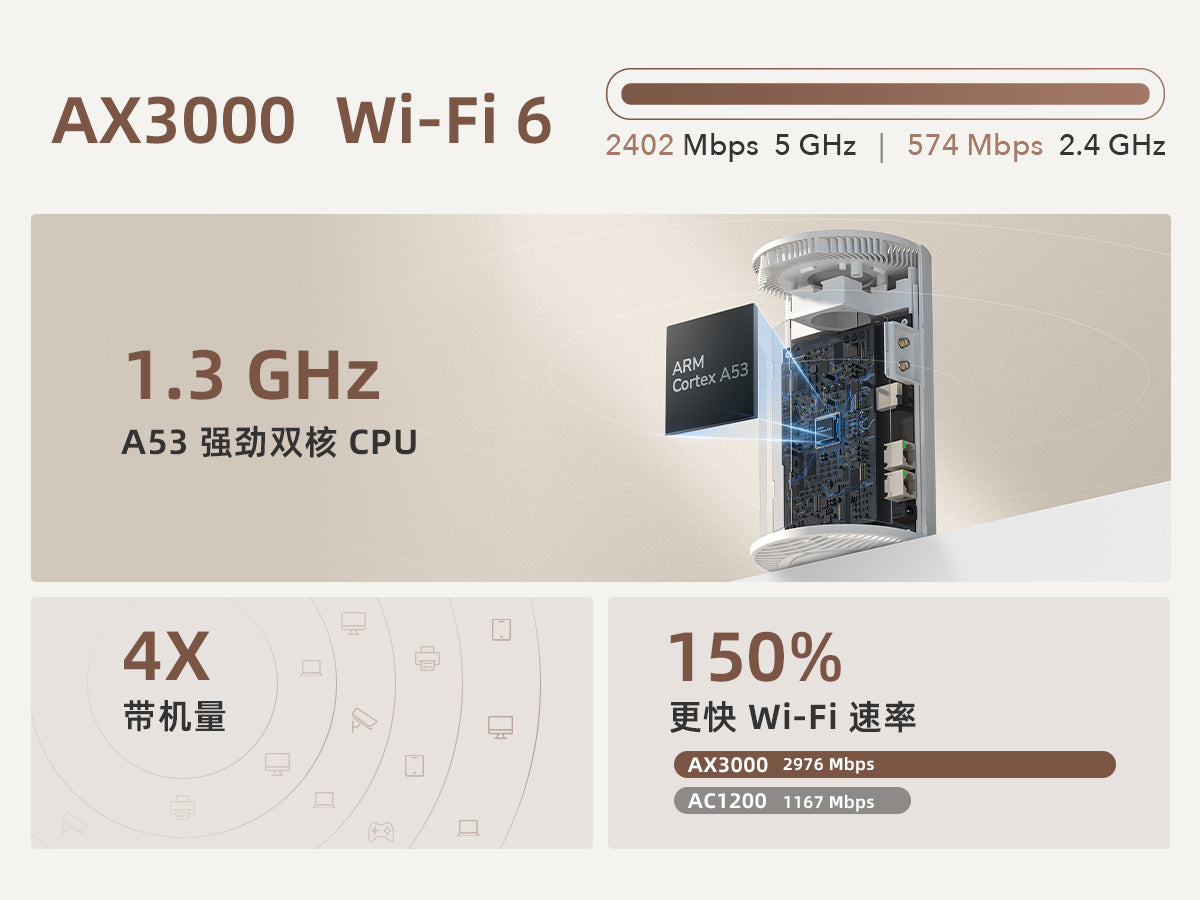

CPU Details 1.3 GHz Dual-Core, ARM Cortex-A53
Memory/Storage
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 256 MB (2 Gbit) DDR3
Cellular
Cellular Cellular Standards
  • 5G Rel. 15
  • DL 4G Cat. 12/ UL 4G Cat. 13
Cellular Antennas 4× Detachable
Detachable Cellular Antennas Connector SMA Female
SIM Options 1× Nano SIM Slot
Available Versions EU, US
EU Version Cellular
EU Version Cellular Suitable Region Europe, Middle East, Africa, Asia-Pacific, Latin America
Max DL Speed 2.6 Gbps (NSA), 2 Gbps (SA)
Max UL Speed 650 Mbps (NSA), 1 Gbps (SA)
Advanced DL/UL 4CA, DL 4×4, UL 2×2 MIMO
Cellular Bands 5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/66/77/78
LTE-FDD: B1/2/3/4/5/7/8/20/28/38/40/41/66
WCDMA: B1/2/5/8
Wireless
Wireless 5 GHz Wi-Fi Speed 2402 Mbps
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas Internal
Beamforming True
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
Range Performance Max: 170 m (558 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance One wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
Interfaces
Interfaces Physical Buttons
  • WPS Button
  • Reset Button
Gigabit RJ45 Ports 2
Ethernet Notes One WAN/LAN, one LAN
FXS Ports 1× RJ11 (VoNR/VoLTE) (Optional)
LED
  • Power
  • Internet
  • Wi-Fi
  • Cellular
Power Input DC Jack
Power
Power Power Methods DC
DC 12V 1.5A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1.5A DC
Reliability
Reliability ESD Contact Protection 4kV
ESD Air Protection 8kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Dimension Φ116×202 mm
Φ4.57×7.95 inches
Installation Desktop
Package Content
Package Content
  • P2
  • Detachable Antennas
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
型号版本
型号版本 P2 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 6
Max Wi-Fi Modulation 1024-QAM
Wi-Fi Efficiency
  • OFDMA
  • MU-MIMO
  • BSS Color
Max Capacity 256
Recommended Client Upper Limit 100
Max Wi-Fi Channel Width 160 MHz
Wi-Fi Security WPA/WPA2/WPA3
Guest Network 2.4 GHz, 5 GHz
WPS True
General
General Operation Modes
  • Cellular Router
  • Wi-Fi Router
Mesh Cudy Mesh Main
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Cellular APN
  • Band Select (Band Lock)
  • Cellular Mode Select
  • Data Roaming
  • APN Profile
  • Manual APN Profile
  • MBN
  • MTU Value
Cellular Mode
  • 5G NSA Only
  • 5G SA Only
  • 4G Only
  • Auto
WAN Mode
  • DHCP
  • Static IP
  • PPPOE

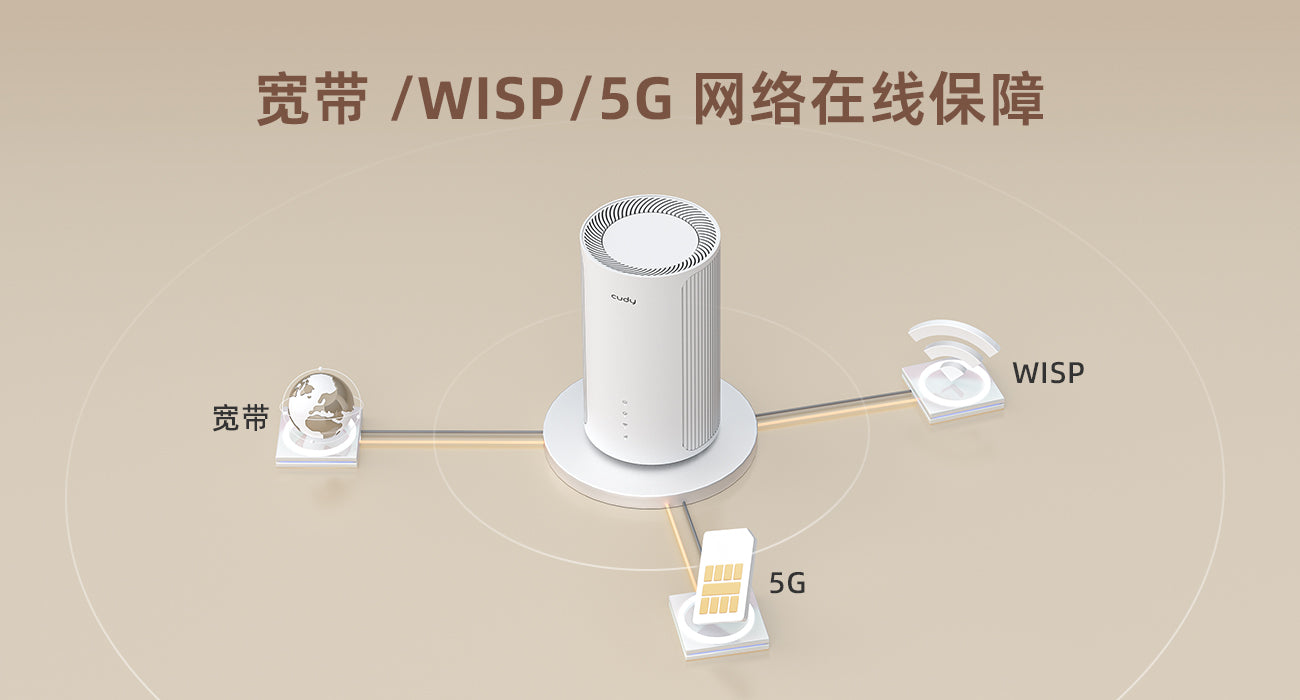

Internet Failover Sequence
  • WAN
  • WISP
  • Cellular
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Staic (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities VPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Wake on LAN True
Online Detection True
Management
Management All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Intenent On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System LED Control ture
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Reliability
  • Timed Reboot
  • Backup and Restore
Dashboard
Dashboard Panel
  • Internet Status
  • Mesh Status
  • Devices Management
  • Cellular Status
  • SMS Send and Receive
  • WAN Status
  • LAN Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Cellular Speed
  • Internet Speed
  • Wi-Fi Speed
  1. 实际无线数据吞吐量会因网络条件, 客户端限制和环境因素（包括建筑布局, 障碍物和客户端位置）而有所不同。
