无线扩展器

RE3600 1.0

即将推出

商品详情
概览与图片
参数
下载

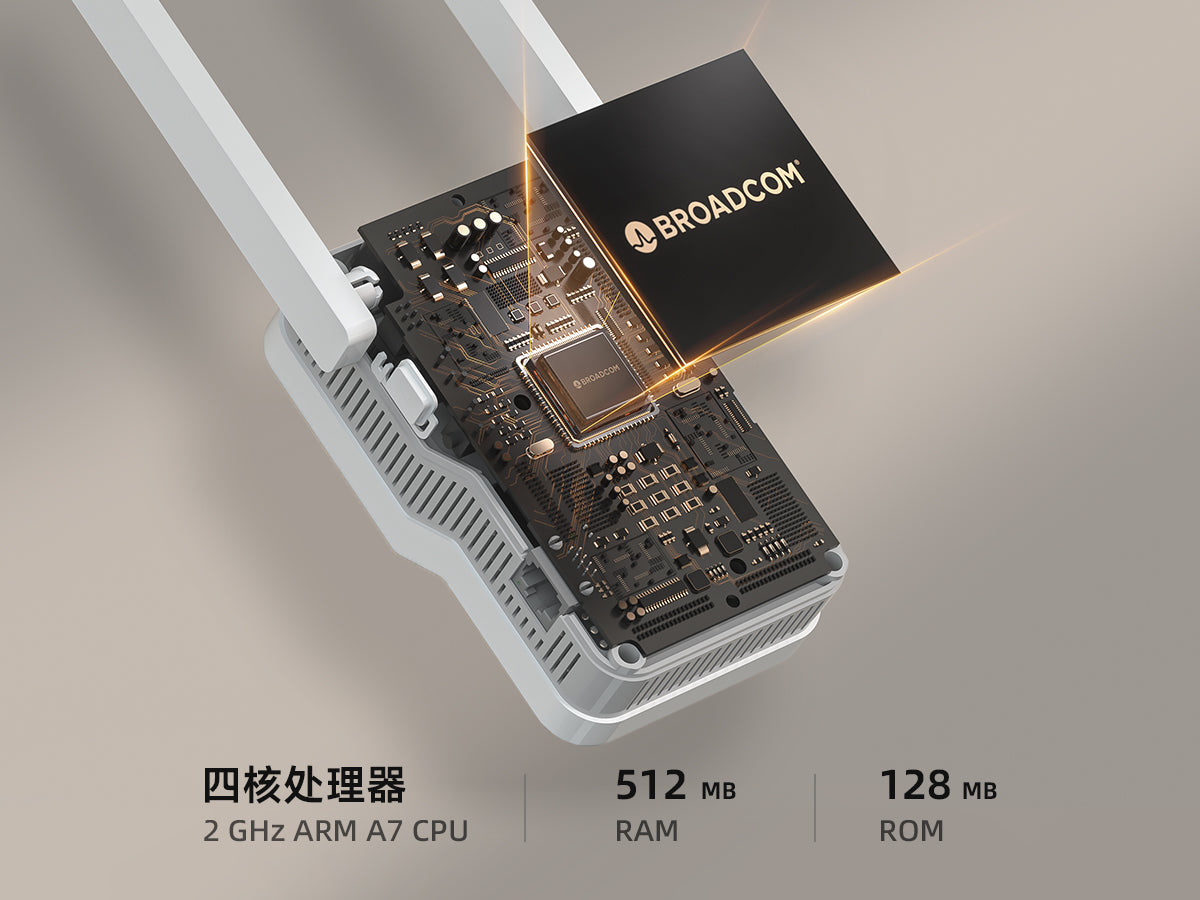

Advanced Wi-Fi 7 Processing

Powerful CPU. Super-Responsive.

Feel the instantaneous respond and smooth operation when browsing, streaming, and gaming, even when connecting numerous devices. The advanced Quad-Core CPU and 512 MB large RAM provides big bump in processing power with higher capacity.

Advanced Wi-Fi 7 Processing

Powerful CPU. Super-Responsive.

Beamforming and External Antennas

Say goodbye to Wi-Fi dead zones

Beamforming detects the direction of connected devices and forms a focused signal towards them to improve coverage. RE3600 wirelessly connects to your existing router, delivering powerful connectivity and expansive Wi-Fi coverage.

Beamforming and External Antennas

Say goodbye to Wi-Fi dead zones

Extend Wi-Fi to Gigabit Ethernet

Share Internet through Wired Connections

Featuring efficient heat dissipation and smart vent design, the RE3600 delivers stable, high-speed connectivity without overheating.

Extend Wi-Fi to Gigabit Ethernet

Share Internet through Wired Connections

Featuring efficient heat dissipation and smart vent design, the RE3600 delivers stable, high-speed connectivity without overheating.

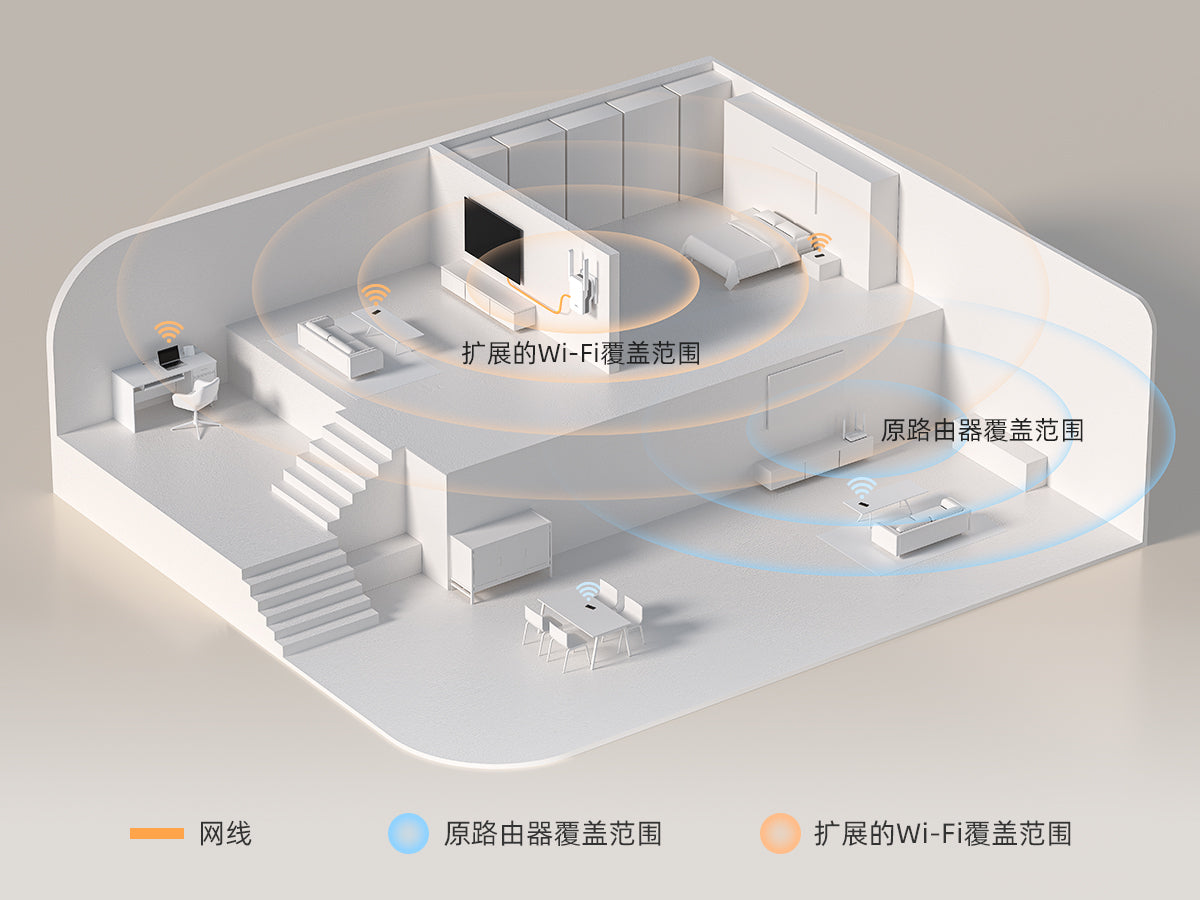

Seamless Wi-Fi Expansion

Fast Roaming with Cudy Mesh

RE3600 supports Cudy Mesh to enable seamless roaming for the whole home with other Cudy Mesh devices, allowing you to move freely between rooms without the need for manual network switching.

Seamless Wi-Fi Expansion

Fast Roaming with Cudy Mesh

RE3600 supports Cudy Mesh to enable seamless roaming for the whole home with other Cudy Mesh devices, allowing you to move freely between rooms without the need for manual network switching.

Encrypts Wireless to the Best Level

The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.

Encrypts Wireless to the Best Level

Cudy App 网络便捷管理

配置网络、管理设备，手机上尽在掌握。此型号支持 Cudy App 云管理和本地管理。

Cudy App 网络便捷管理

配置网络、管理设备，手机上尽在掌握。此型号支持 Cudy App 云管理和本地管理。

NaN -Infinity

BE3600 Mesh Wi-Fi 7 扩展器

Name: BE3600 Mesh Wi-Fi 7 扩展器, RE3600 1.0
Brand: Cudy

BE3600 Mesh Wi-Fi 7 扩展器, RE3600 1.0

RE3600 1.0

产品多属性

该扩展器/中继器具有超快的 BE3600 WiFi 7 和千兆以太网端口。按下其 WPS 按钮和路由器上的WPS按钮可立即完成配对扩展 Wi-Fi。

兼容任意品牌无线路由器
双频 Wi-Fi 7
1× 千兆网口
50台设备适用 ¹
Cudy Mesh 子路由
用多频段进行回传，组网更稳定
数据回传

查看完整详细信息

硬件参数

软件参数

型号版本
型号版本	RE3600 1.0
CPU
CPU	Chipset	BCM6764
	CPU Details	2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage
Memory/Storage	Flash/ROM	128 MB (1 Gbit) NAND
	DDR/RAM	512 MB (4 Gbit) DDR3L
Wireless
Wireless	5 GHz Wi-Fi Speed	2882 Mbps
	2.4 GHz Wi-Fi Speed	688 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	2× Fixed
	FEM or PA/LNA	5 GHz: 2× External 2.4 GHz: 2× Internal
	Range Performance	Max: 150 m (492 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')
Interfaces
Interfaces	Gigabit RJ45 Ports	1
	LED	Signal Strength WPS Power
	Physical Buttons	WPS Button Reset Button
	Power Input	AC Plug
	Power Input Note	EU, US, UK, AU Plug are Available
Power
Power	Power Methods	AC
	AC	100V ~ 240V
Reliability
Reliability	Environment	Operating Temperature: 0 ℃ ~ 50 ℃ (32 ℉ ~ 122 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Certifications
Certifications	FCC, CE
Mechanical
Mechanical	Install in a Daisy Chain	Recommend to install less than 3 repeaters in a wireless chain.
	Installation	Plug-In-Socket
	Casing Material	Plastic
	Dimension	129.6×80×48.6 mm 5.1×3.15×1.91 inches
Package Content
Package Content	RE3600 Installation Guide
Ordering Information
Ordering Information	Retail Package Dimension	161×120×96 mm 6.34×4.72×3.78 inches
	Units per Carton	30
	Carton Dimension	50.4×37.7×34.1 cm 19.84×14.84×13.43 inches

型号版本
型号版本	RE3600 1.0
Wireless
Wireless	Wi-Fi Standards	Wi-Fi 7
	Max Wi-Fi Modulation	4K-QAM
	Wi-Fi Efficiency	MLO MRU Puncturing OFDMA MU-MIMO BSS Color
	Max Capacity	512
	Recommended Client Upper Limit	50
	Max Wi-Fi Channel Width	160 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	WPS	True
General
General	Operation Modes	Access Point Range Extender
	Mesh	Cudy Mesh Satellite
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul	True
System
System	LED Control	True
	Local Control Method	Config Web Page App Control
	Remote Control Method	App Control
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
Dashboard
Dashboard	Panel	Connected Devices Host Network Status Wi-Fi Status LAN Status System Version
System
System	Diagnostic Tools	Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard
Dashboard	Charts	Mesh Topology
General
General	Internet Failover Sequence	Wired Wireless
