無線路由器
WR3600E
即將推出
1 1

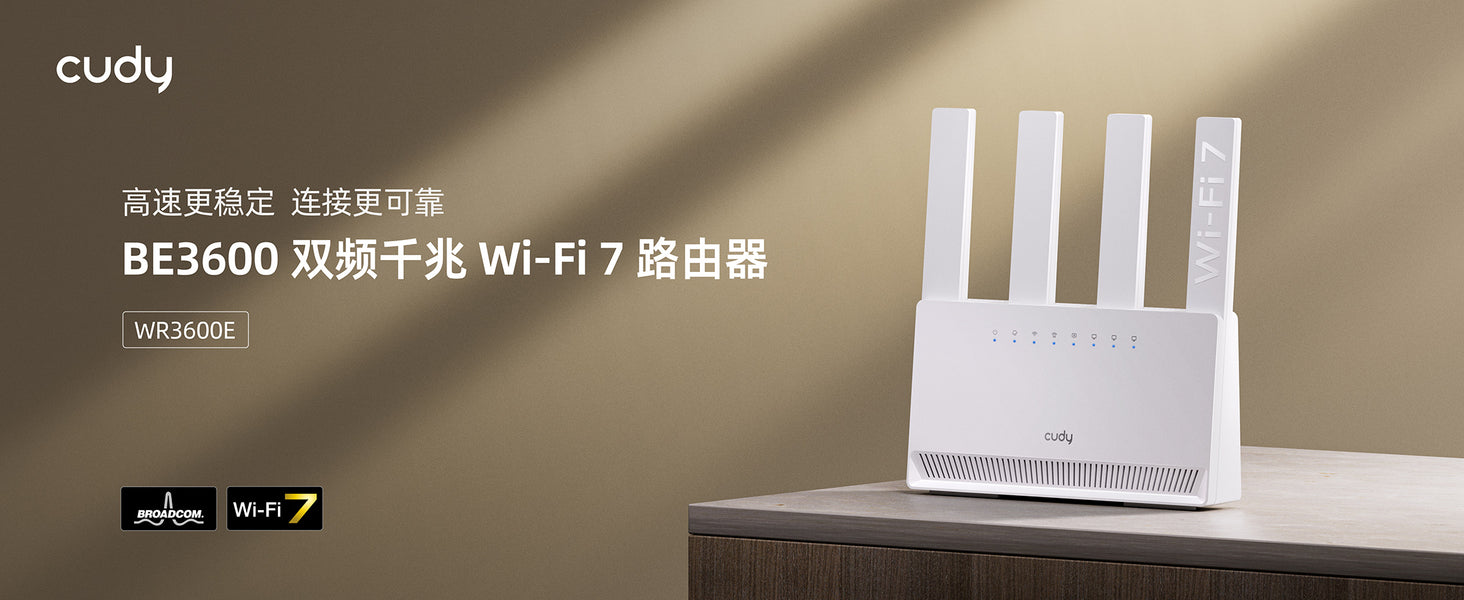

BE3600 千兆 Wi-Fi 7 路由器，WR3600E 1.0

BE3600 千兆 Wi-Fi 7 路由器，WR3600E 1.0

WR3600E 1.0

一款雙頻 WiFi 7 路由器，提供 MLO 速度聚合功能，非常適合延遲敏感、速度要求較高的場景。

  • Broadcom 2 GHz 四核心 CPU
  • 4 筆資料流雙頻 Wi-Fi 7
  • 2882 Mbps + 688 Mbps 無線網絡 1
  • 4 個Gigabit乙太網路連接埠
  • 200 個連接設備 2
  • 佔地 130 平方米（1,400 平方英尺） 3
  • VPN 伺服器和用戶端
  • Cudy App、雲端控制
查看完整資訊
硬體規格
軟體規格
型號版本
型號版本 WR3600E 1.0
CPU
CPU Chipset BCM6764
CPU Details 2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 512 MB (4 Gbit) DDR3L
Wireless
Wireless 5 GHz Wi-Fi Speed 2880 Mbps
2.4 GHz Wi-Fi Speed 688 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 4× Fixed
5 GHz Antenna Gain Max 7.8dBi
2.4 GHz Antenna Gain Max 5.2dBi
FEM or PA/LNA
  • 5 GHz: 2× External
  • 2.4 GHz: 2× Internal
Beamforming True
Range Performance Max: 240 m (787 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

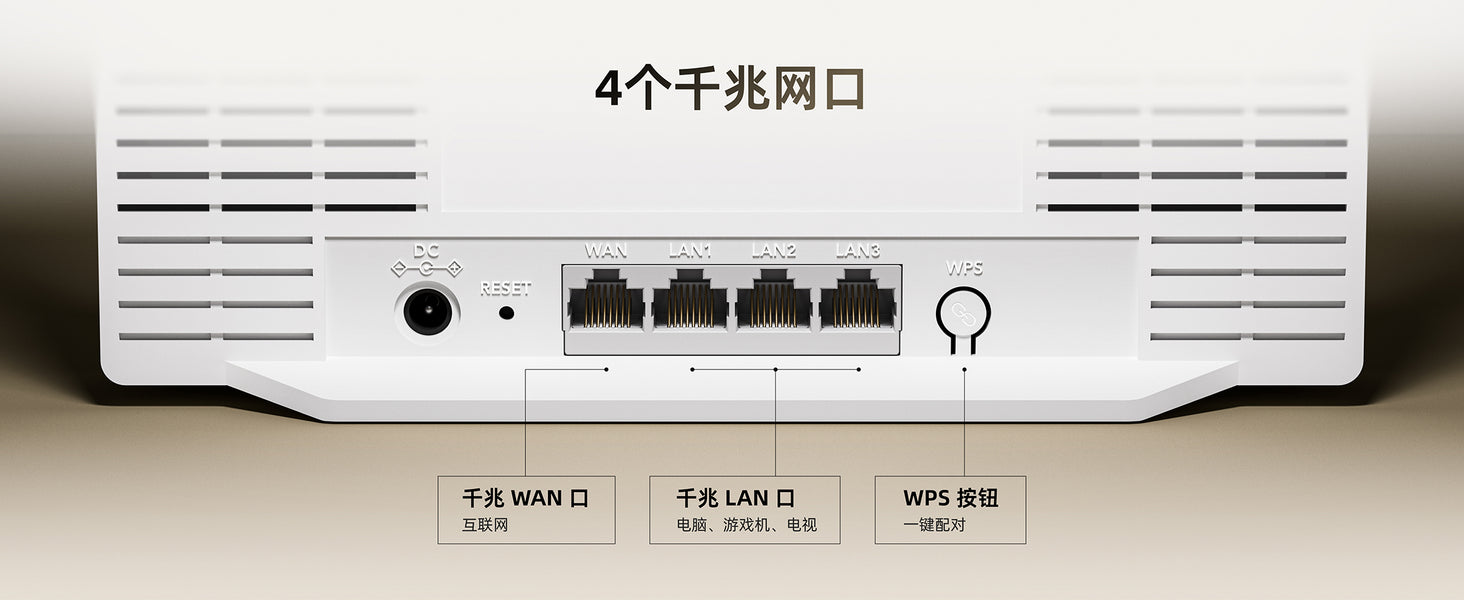

Interfaces
Interfaces Gigabit RJ45 Ports 4
Ethernet Notes 1× WAN port, the rest are LAN ports
LED
  • System
  • Internet
  • 2.4 GHz Wi-Fi
  • 5 GHz Wi-Fi
  • WAN
  • LAN
Physical Buttons
  • WPS Button
  • Reset Button
Power Input DC Jack
Power
Power Power Methods DC
DC 12V 1A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Max Power Consumption (W) 8.5W
Reliability
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation Desktop
Dimension 209×48×220.4 mm
8.23×1.89×8.68 inches
Product Weight 333.5 g (11.76 oz.)
Package Content
Package Content
  • WR3600E
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information
Ordering Information Retail Package Weight EU: 763.5 g (26.93 oz.)
Carton Gross Weight EU: 8.5 kg (18.74 lbs)
Carton Net Weight EU: 7.6 kg (16.76 lbs)
型號版本
型號版本 WR3600E 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 7
Max Wi-Fi Modulation 4K-QAM
Wi-Fi Efficiency
  • MLO
  • MRU
  • Puncturing
  • OFDMA
  • MU-MIMO
  • BSS Color
Max Capacity 512
Recommended Client Upper Limit 200
Max Wi-Fi Channel Width 160 MHz
Wi-Fi Security WPA/WPA2/WPA3
Guest Network 2.4 GHz, 5 GHz
WPS True
General
General Operation Modes
  • Wi-Fi Router
  • Access Point
Multi-Band Backhaul true
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
Notes The Range Extender/WISP/Client modes will be available with later firmware upgrade.
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Staic (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities VPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Wake on LAN True
Online Detection True
Management
Management All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Intenent On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System LED Control ture
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Dashboard
Dashboard Panel
  • Internet Status
  • Devices Management
  • WAN Status
  • LAN Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Internet Speed
  • Wi-Fi Speed
Notes Mesh Status and WISP Status will be avaialble with later firmware upgrade.
Mesh Topology and WISP Speed will be available with later firmware upgrade.
  1. 實際無線資料吞吐量會因網路條件、客戶端限制和環境因素（包括建築佈局、障礙物和客戶端位置）而有所不同。
  2. 多個設備的實際性能可能會受到所使用的應用程式類型、總可用頻寬和設備功能的影響。連接較舊的 Wi-Fi 設備（舊標準）可能會降低整體效率。使用效率功能需要也支援這些功能的相容客戶端設備。在規格電子表格的軟體部分中尋找有關支援的效率功能的更多資訊。
  3. 無線覆蓋範圍聲明僅供參考。覆蓋性能會因環境因素（包括建築佈局、障礙物、交通量和密度以及設備位置）而有所不同。為了獲得最佳覆蓋範圍，請將裝置放置在需要 Wi-Fi 的區域的中心位置。
