Creates Faster and Broader Business Wi-Fi

When the 2.4 GHz band is far-reaching in coverage, it is also easily congested by massive legacy devices. The Dual-band feature allows the devices to utilise the less crowded 5 GHz band, enabling speeds more than twice as fast and more responsive.

Creates Faster and Broader Business Wi-Fi

When the 2.4 GHz band is far-reaching in coverage, it is also easily congested by massive legacy devices. The Dual-band feature allows the devices to utilise the less crowded 5 GHz band, enabling speeds more than twice as fast and more responsive.

Connects More Devices

MU-MIMO technology allows for the simultaneous transmission of multiple data streams to multiple devices, improving efficiency and throughput under heavy use.

Boosted Coverage

Beamforming technology tracks connected devices' directions and boosts signal towards them, improving coverage performance.

Seamless Coverage with Fast Roaming

Mesh support (802.11k/v) allows clients to switch between access points seamlessly, ensuring uninterrupted Wi-Fi calling or live streaming when moving around. This feature requires a Cudy Wi-Fi router/VPN router/access point controller as a gateway with firmware newer than 15.28.

Advanced Business Features

Captive Portal

Improve your brand awareness by displaying a customized login page for new clients.

Band Steering

Assign devices to less congested bands.

Auto Channel Selection

Avoid signal interruptions with nearby access points.

Auto Mesh Optimization

Form mesh backhaul via less congested routes automatically.

Flexible Wired-and-Wireless Hybrid Backhaul

Simple Wireless Mesh Backhaul

Hybrid Backhaul for Higher Performance

Multi-Mode for Multiple Scenarios

Access Point

Simply create a Wi-Fi spot behind a router.

Wi-Fi Router

Please use the router mode when PPPoE authorization is needed or when creating a separate subnet is needed.

Range Extender

The Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas.

WISP

WISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.

Versatile Powering and Installation

PoE or DC Power Supply

Supports 802.3at/af PoE, 24-57V Passive PoE, and DC Power Supply. DC power adapter is included in the box.

Versatile Mounting

Mounting kits are included in the box.

Skip to product information
1 of 6

AC1200 Gigabit Wi-Fi Access Point

AC1200 Gigabit Wi-Fi Access Point, AP1300 1.0

AP1300 1.0

Adapter in the Box

A wall/ceiling-mounted WiFi AP designed for offices and classrooms.


  • 4-Stream Dual-Band Wi-Fi 5
  • 867 Mbps + 300 Mbps Wi-Fi 1
  • 1× Shielded GbE PoE In
  • 802.3at/af, Passive PoE, DC
  • Covers 100m² (1,100 ft²) 2
  • 50 Connected Devices 3
View full details
Hardware Specs
Software Specs
Model Version
Model Version AP1300 1.0
CPU
CPU Chipset MT7621DAT
CPU Details 880 MHz Dual-Core CPU
Memory/Storage
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR3
Wireless
Wireless 5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 4× Internal
5 GHz Antenna Gain Max 4.64dBi
2.4 GHz Antenna Gain Max 5.31 dBi
Beamforming True
Range Performance Max: 170 m (558 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance One wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
Interfaces
Interfaces Gigabit RJ45 Ports 1
Ethernet Notes Accepts PoE powering
LED System
Physical Buttons Reset Button
Power Input DC Jack, PoE via Ethernet Port
Power
Power Power Methods
  • DC
  • Passive PoE
  • 802.3at/af PoE
DC 12V 1A
Passive PoE 24 ~ 57V
Power Adapter AP1300 | DC Adapter in the box:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
AP1300_P | PoE Adapter in the box::
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 48V Passive PoE
Max Power Consumption (W) Max (PoE): 11 W
Max (DC): 7.5 W
Idle Power Consumption (W) 4.008 W
Reliability
Reliability Advanced Hardware Watchdog
ESD Contact Protection 4kV
ESD Air Protection 8kV
Environment Operating Temperature: -10 ℃ ~ 65 ℃ (14 ℉ ~149 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation
  • Wall-mount
  • Ceiling-mount
Dimension Φ231.9×57.1 mm
Φ9.13×2.25 inches
Product Weight 400 g (14.11 oz.)

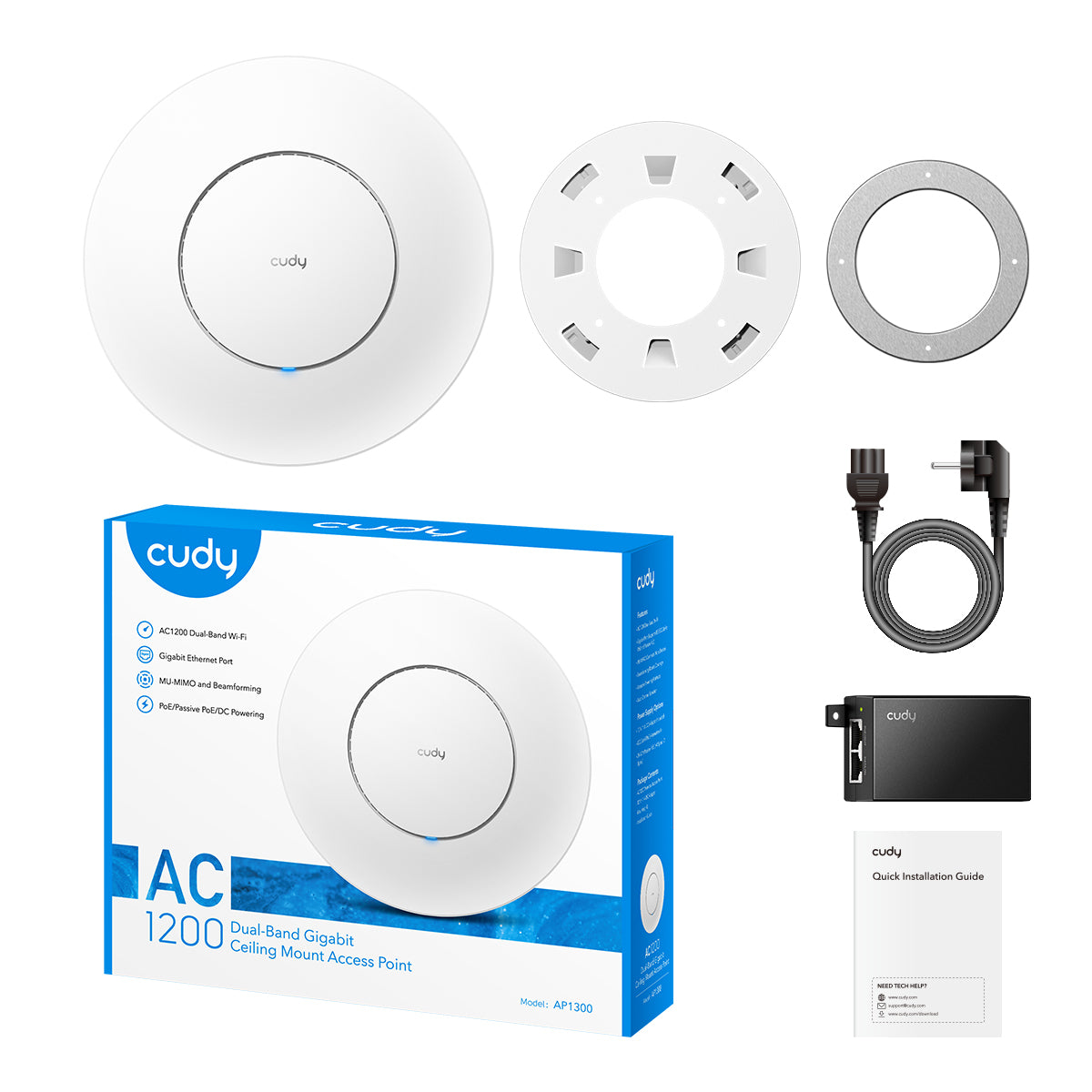

Package Content
Package Content
  • AP1300
  • Power Adapter
  • Mounting Kit
  • Ethernet Cable
  • Installation Guide
Ordering Information
Ordering Information Retail Package Weight
  • With DC Adapter | EU: 817 g (28.82 oz.)
  • With PoE Adapter (_P) | EU: 920 g (32.45 oz.)
  • With DC Adapter | US: 809 g (28.54 oz.)
Retail Package Dimension 283×238×68 mm
11.14×9.37×2.68 inches
Carton Net Weight
  • With DC Adapter | EU: 16.3 kg (35.94 lbs)
  • With PoE Adapter (_P) | EU: 18.4 kg (40.57 lbs)
  • With DC Adapter | US: 16.2 kg (35.71 lbs)
Carton Gross Weight
  • With DC Adapter | EU: 17.7 kg (39.02 lbs)
  • With PoE Adapter (_P) | EU: 19.8 kg (43.65 lbs)
  • With DC Adapter | US: 18.6 kg (41.01 lbs)
Units per Carton 20
Carton Dimension 58×37.5×49.5 cm
22.83×14.76×19.49 inches
Model Version
Model Version AP1300 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 5
Max Wi-Fi Modulation 256-QAM
Wi-Fi Efficiency MU-MIMO
Wi-Fi Efficiency Note MU-MIMO available on 5 GHz
Max Capacity 128
Recommended Client Upper Limit 50
Max Wi-Fi Channel Width 80 MHz
Wi-Fi Security WPA/WPA2/WPA3
WPS True
General
General Operation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
Mesh Cudy Mesh
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Multi-Band Backhaul true
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Staic (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities VPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Captive Portal True
Wake on LAN True
Online Detection True
Management
Management All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Intenent On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System LED Control ture
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Dashboard
Dashboard Panel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • WISP Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Internet Speed
  • WISP Speed
  • Wi-Fi Speed
General
General Internet Failover Sequence
  • WAN
  • WISP

  1. Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
  2. The wireless coverage claim serves as a reference only. Coverage performance will vary due to environmental factors including building layout, obstacles, traffic volume and density, and device location. For optimal coverage, please place the device in a central location within the area requiring Wi-Fi.
  3. Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
