交换机
FS1016

功能强大 性能稳定

VLAN 模式

保护客户端免受客户端黑客攻击。在 VLAN 模式下，下行端口1-14只能与上行端口通信。

延长模式

将端口1-14的传输距离延长至最大250米，轻松解决远距离网络部署难题。

高效节能

低功耗全钢壳，散热性能更佳。无风扇，静音运行无干扰。

机架安装

支持标准机架安装，内含挂耳。

丰富的使用场景

办公网络

商场 Wi-Fi

监控场景

数据中心

1 4

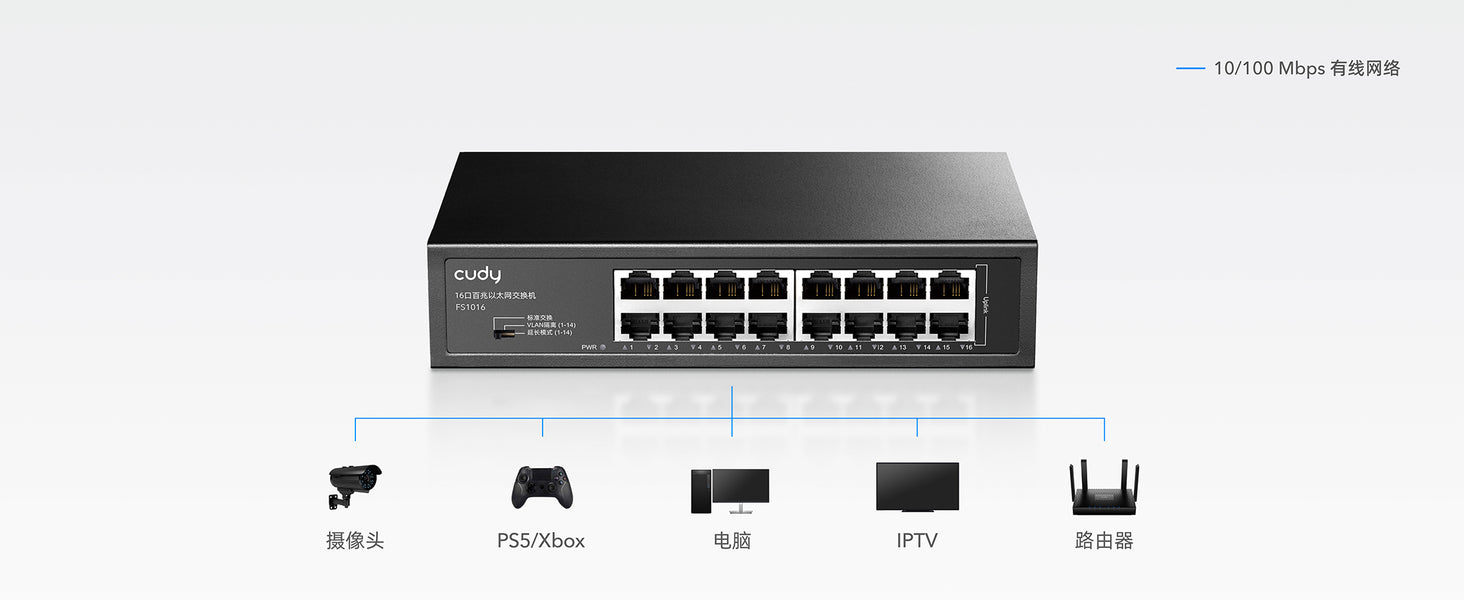

16口 10/100 Mbps 以太网交换机

16口 10/100 Mbps 以太网交换机, FS1016 1.0

FS1016 1.0

16-FE 交换机非常适合家庭和办公环境中的有线网络扩展。

  • 16× 百兆口
  • 2 Mbit 数据包缓冲区
  • 802.3x 流量控制
  • Default/VLAN/Extend 模式
  • 延长传输250米
  • 用于客户端隔离的 VLAN
  • 最大2W,空闲0.8W
  • 桌面安装，机架安装
  • 200×118×44 mm
查看完整详细信息
型号版本
型号版本 FS1016 1.0
Interfaces
Interfaces 10/100 Mbps RJ45 Ports 16
Extend Mode Ports #1~#14
VLAN Mode Ports #1~#14
LED
  • Power
  • Link/ACT of Each Ethernet Port
Power Input AC Inlet
Physical Buttons VLAN/Default/Extend DIP Switch
Performance
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports.
MAC Address Table 8192
Max Switching Capacity 3.2 Gbps
Jumbo Frame 2 KB
Packet Buffer 2 Mbit
Power
Power Basic Power Saving True
Power Methods AC
AC 90~260V 50/60Hz
Max Power Consumption 2.0W
Idle Power Consumption 0.8W
Switching
Switching 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3x Flow Control
Reliability
Reliability Grounding Methods
  • Three-Prong Plug
  • Grounding Point
Lightning/Surge Protection RJ45: 4KV
AC: CM 4KV/DM 2KV
ESD Contact Protection 6KV
ESD Air Protection 8KV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical
Mechanical Dimension 200×118×44 mm
7.87×4.65×1.73 inches
Product Weight 600 g (21.16 oz.)
Casing Material Metal
Installation
  • Desktop
  • Rackmount via Brackets
Package Content
Package Content
  • FS1016
  • Power Cord
  • Installation Guide
  • Mounting Kit
Ordering Information
Ordering Information Retail Package Weight EU: 1050 g (37.04 oz.)
Carton Net Weight EU: 10.5 kg (23.15 lbs)
Carton Gross Weight EU: 11.6 kg (25.57 lbs)
