交换机
GS105U
即将推出

Reliable Transimitting

A packet buffer prevents packet loss and improves the reliability of your network.

Extra Transmission Distance

140 meters of Gigabit transmission adding 40% longer distance compared to a standard switch, simplifies wiring for larger premises.

Saves Power

Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.

Wall Mounting

Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.

Compact Size. Modern Design.

Compact enough to fit in most home network distribution boxes. The wave line white casing casts a modern aesthetic. The retail package comes with a USB-A to USB-C power cable.

Compact Size. Modern Design.

Compact enough to fit in most home network distribution boxes. The wave line white casing casts a modern aesthetic. The retail package comes with a USB-A to USB-C power cable.

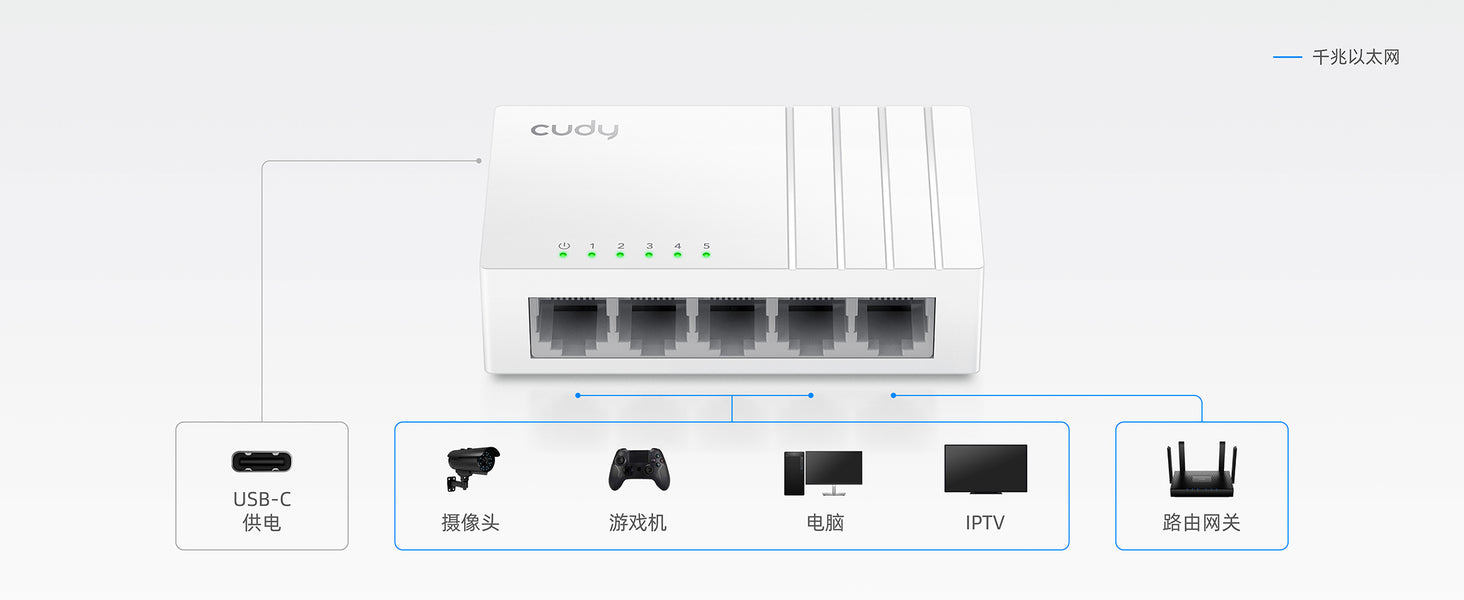

扩展网络以容纳更多设备

将办公室计算机连接到有线网络

通过稳定的以太网增强家庭设备的性能

1 4

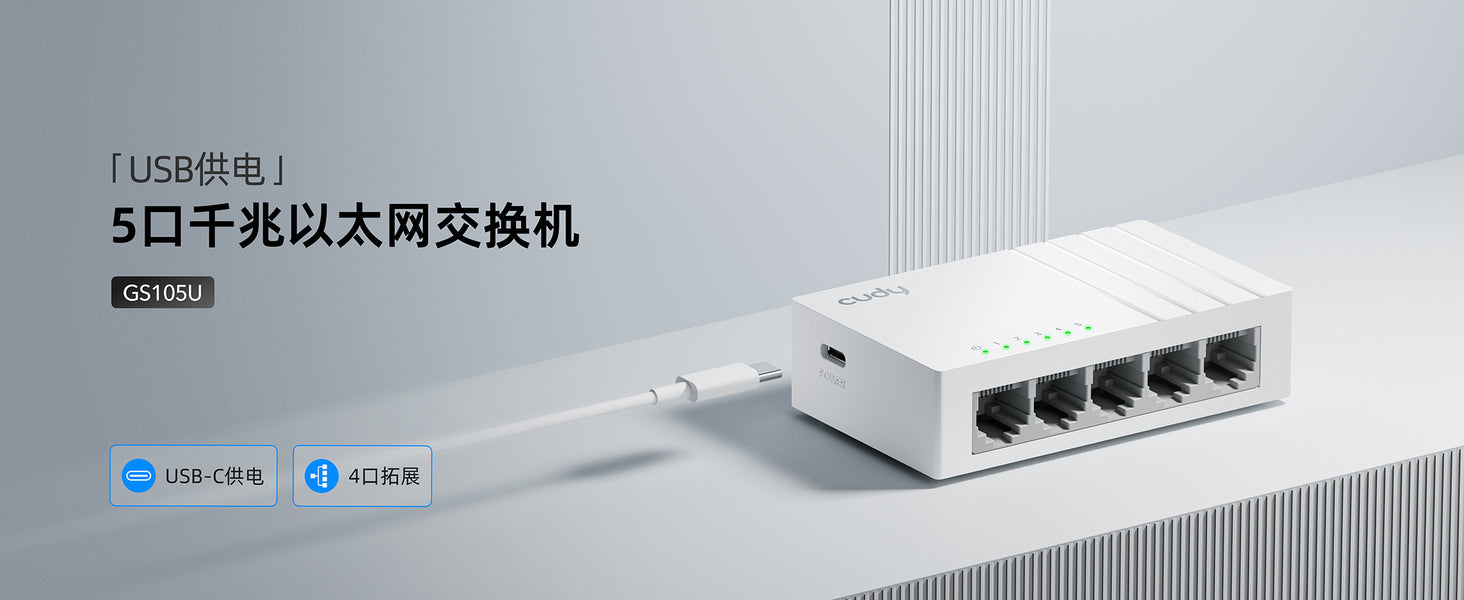

带 USB-C 电源插孔的 5口千兆以太网交换机

带 USB-C 电源插孔的 5口千兆以太网交换机, GS105U 1.0

GS105U 1.0

由 USB-C 供电的以太网交换机, 非常适合在桌面上共享有线网络。

  • USB-C 供电
  • 5个千兆网口
  • 3 Mbit 数据包缓冲区
  • 最大 2W,空闲 1.4W
  • 桌面安装/壁挂安装
  • 88×52.5×24 mm
查看完整详细信息
型号版本
型号版本 GS105U 1.0
Interfaces
Interfaces Gigabit RJ45 Ports 5
LED
  • Power
  • Speed/Link/ACT of Each Ethernet Port
Power Input USB-C Port
Performance
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 140 meters at Gigabit
MAC Address Table 2048
Max Switching Capacity 10 Gbps
Jumbo Frame 15 KB
Packet Buffer 3 Mbit
Power
Power Basic Power Saving True
Power Methods DC via USB-C Jack
DC 5V 0.55A
Max Power Consumption 2W
Idle Power Consumption 1.4W
Switching
Switching 802.3 Protocols
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
Reliability
Reliability Lightning/Surge Protection 2kV
ESD Contact Protection 4kV
ESD Air Protection 8kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical
Mechanical Dimension 88×52.5×24 mm
3.46×2.07×0.94 inches
Product Weight 53 g (1.87 oz.)
Casing Material Plastic
Installation
  • Desktop
  • Wall-mount
Package Content
Package Content
  • GS105U
  • Installation Guide
  • USB-A to USB-C Power Cable
Ordering Information
Ordering Information Retail Package Dimension 92×89×48 mm
3.62×3.5×1.89 inches
Retail Package Weight EU: 124 g (4.37 oz.)
Units per Carton 100
Carton Net Weight EU: 12.4 kg (27.34 lbs)
Carton Gross Weight EU: 13.2 kg (29.1 lbs)
Carton Dimension 48.3×26.7×38 cm
19.02×10.51×14.96 inches
