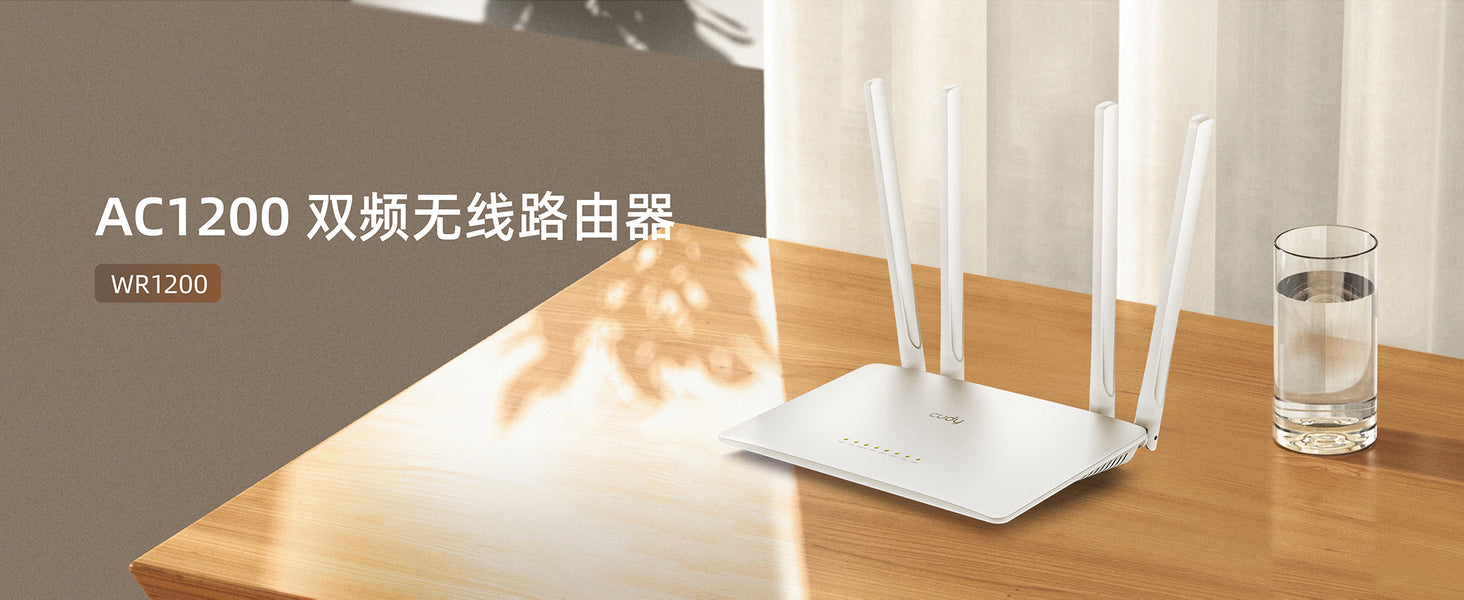

AC1200 Wi-Fi 路由器

AC1200 Wi-Fi 路由器, WR1200 2.0

WR1200 2.0

双频 WiFi 路由器非常适合流畅地播放视频, 最高可提供 100 Mbps 的互联网接入, 具有 MU-MIMO 和 App 控制功能。

  • 4数据流双频Wi-Fi 5
  • 867 Mbps + 300 Mbps 无线速率 1
  • 5× 百兆口
  • 4×高增益天线
  • 40台设备可适用 2
  • 覆盖可达 100m² 3

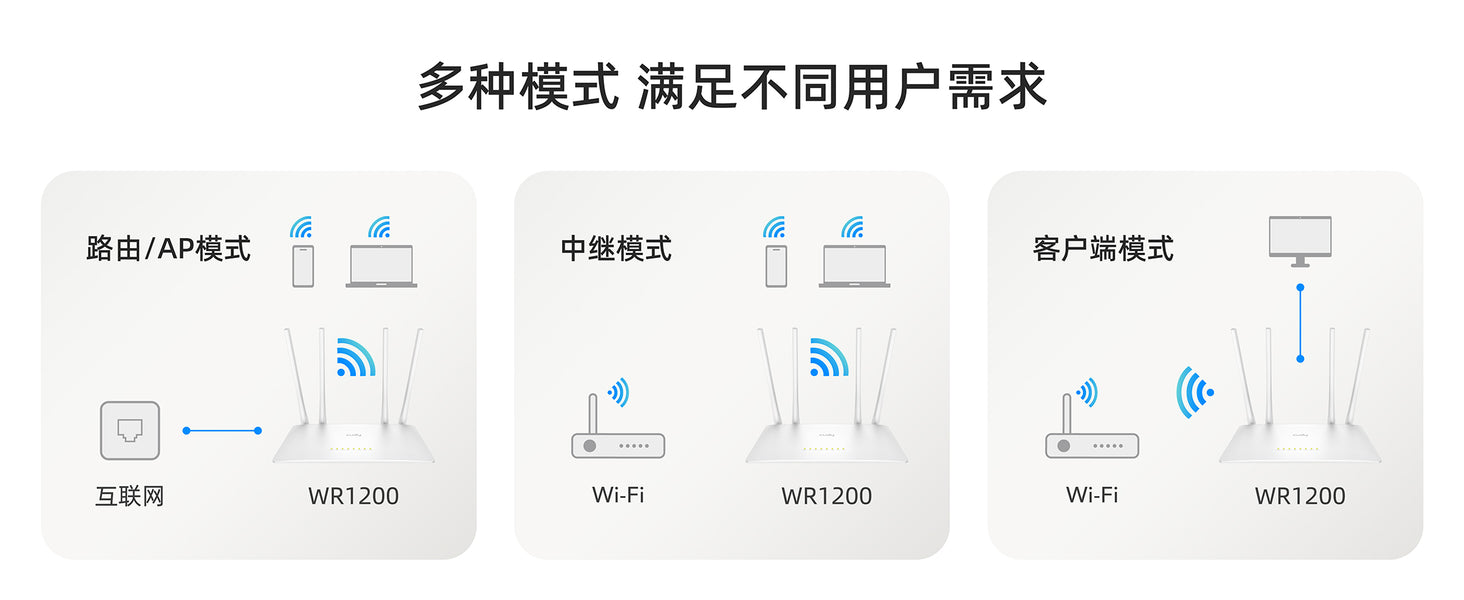

  • 路由/AP/中继/WISP/客户端模式
  • Cudy 应用程序
查看完整详细信息
硬件参数
软件参数
型号版本
型号版本 WR1200 2.0
CPU
CPU Chipset MT7628
CPU Details 580 MHz Single-Core, MIPS24KEC
Memory/Storage
Memory/Storage Flash/ROM 8 MB (64 Mbit ) NOR
DDR/RAM 64 MB (512 Mbit) DDR2
Wireless
Wireless 5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 4× Fixed
Beamforming True
Range Performance Max: 170 m (558 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance One wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
Interfaces
Interfaces 10/100 Mbps RJ45 Ports 5
Ethernet Notes 1× WAN port, the rest are LAN ports
LED
  • Power
  • Internet
  • Speed/Link/ACT of Ethernet Port
  • Wi-Fi
Physical Buttons
  • WPS Button
  • Reset Button
Power Input DC Jack
Power
Power Power Methods DC
DC 12V 1A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Reliability
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation
  • Desktop
  • Wall-mount
Dimension 220×135×30 mm
8.66×5.31×1.18 inches
Product Weight
  • EU: 259 g (9.14 oz.)
  • ZH: 258.8 g (9.13 oz.)
Package Content
Package Content
  • WR1200
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information
Ordering Information Retail Package Weight
  • EU: 651 g (22.96 oz.)
  • ZH: 625.0 g (22.05 oz.)
Retail Package Dimension 290×250×64 mm
11.42×9.84×2.52 inches
Units per Carton 16
Carton Dimension 53.8×51.6×31.3 cm
21.18×20.31×12.32 inches
Carton Gross Weight
  • EU: 11.9 kg (26.23 lbs)
  • ZH: 11.2 kg (24.69 lbs)
Carton Net Weight
  • EU: 10.4 kg (22.93 lbs)
  • ZH: 10.0 kg (22.05 lbs)
型号版本
型号版本 WR1200 2.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 5
Max Wi-Fi Modulation 256-QAM
Wi-Fi Efficiency MU-MIMO
Wi-Fi Efficiency Note MU-MIMO available on 5 GHz
Max Capacity 128
Recommended Client Upper Limit 40
Max Wi-Fi Channel Width 80 MHz
Wi-Fi Security WPA/WPA2/WPA3
Guest Network 2.4 GHz, 5 GHz
WPS True
General
General Operation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
  • PPTP
  • L2TP
Internet Failover Sequence
  • WAN
  • WISP
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Staic (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities VPN Client
  • Wireguard
  • OpenVPN
  • PPTP
  • L2TP
VPN Performance WireGuard Client (UL/DL): 49 / 43 Mbps
DNS Options
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
Captive Portal True
Wake on LAN True
Online Detection True
Management
Management All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Intenent On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • TR069/TR098/TR111/TR181
  • Config Page via HTTP
Firmware Upgrade Local Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • German
  • Spanish
  • French
  • Hebrew
  • Italian
  • Portuguese
Dashboard
Dashboard Panel
  • Internet Status
  • Devices Management
  • WAN Status
  • LAN Status
  • WISP Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Internet Speed
  • WISP Speed
  • Wi-Fi Speed
  1. 实际无线数据吞吐量会因网络条件, 客户端限制和环境因素（包括建筑布局, 障碍物和客户端位置）而有所不同。
  2. 多个设备的实际性能可能会受到所使用的应用程序类型, 总可用带宽和设备功能的影响。连接较旧的 Wi-Fi 设备（旧标准）可能会降低整体效率。此外,使用效率功能需要也支持这些功能的兼容客户端设备。在规格电子表格的软件部分中查找有关支持的效率功能的更多信息。
  3. 无线覆盖范围声明仅供参考。覆盖性能会因环境因素（包括建筑布局, 障碍物, 交通量和密度以及设备位置）而有所不同。为了获得最佳覆盖范围,请将设备放置在需要 Wi-Fi 的区域的中心位置。
