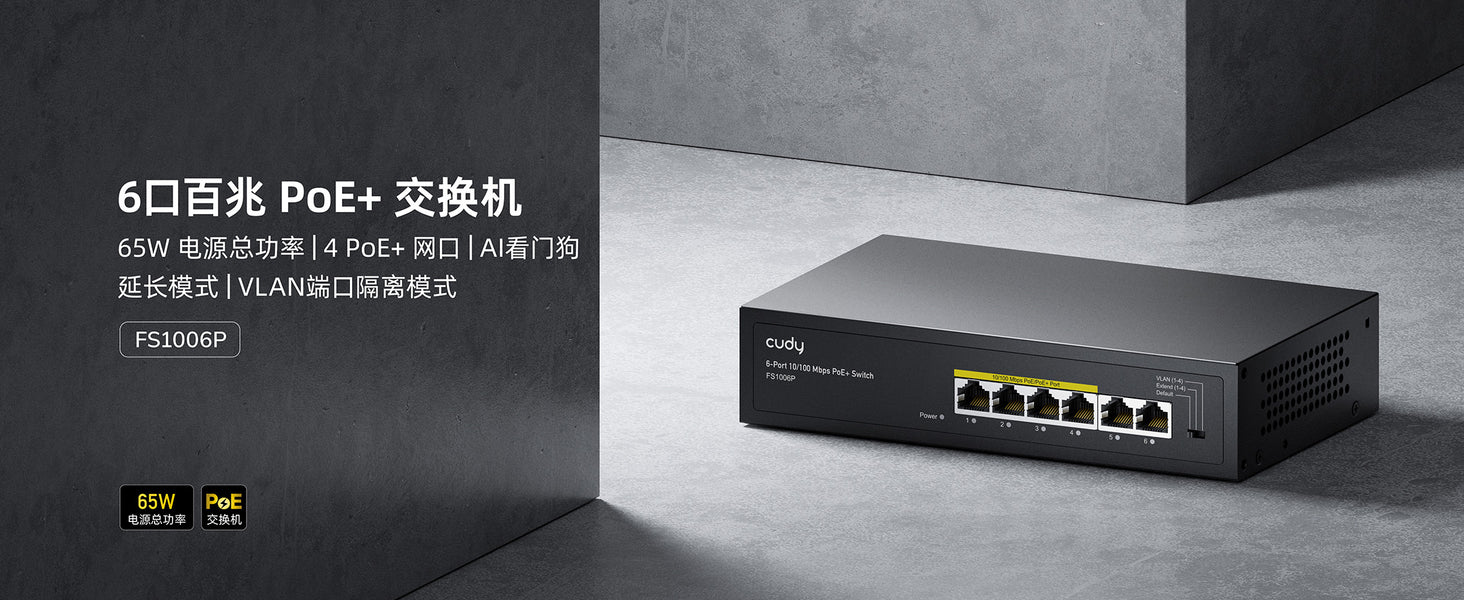

    6-Port 10/100M PoE+ Switch

    6-Port 10/100M PoE+ Switch, FS1006P 3.0

    FS1006P 3.0

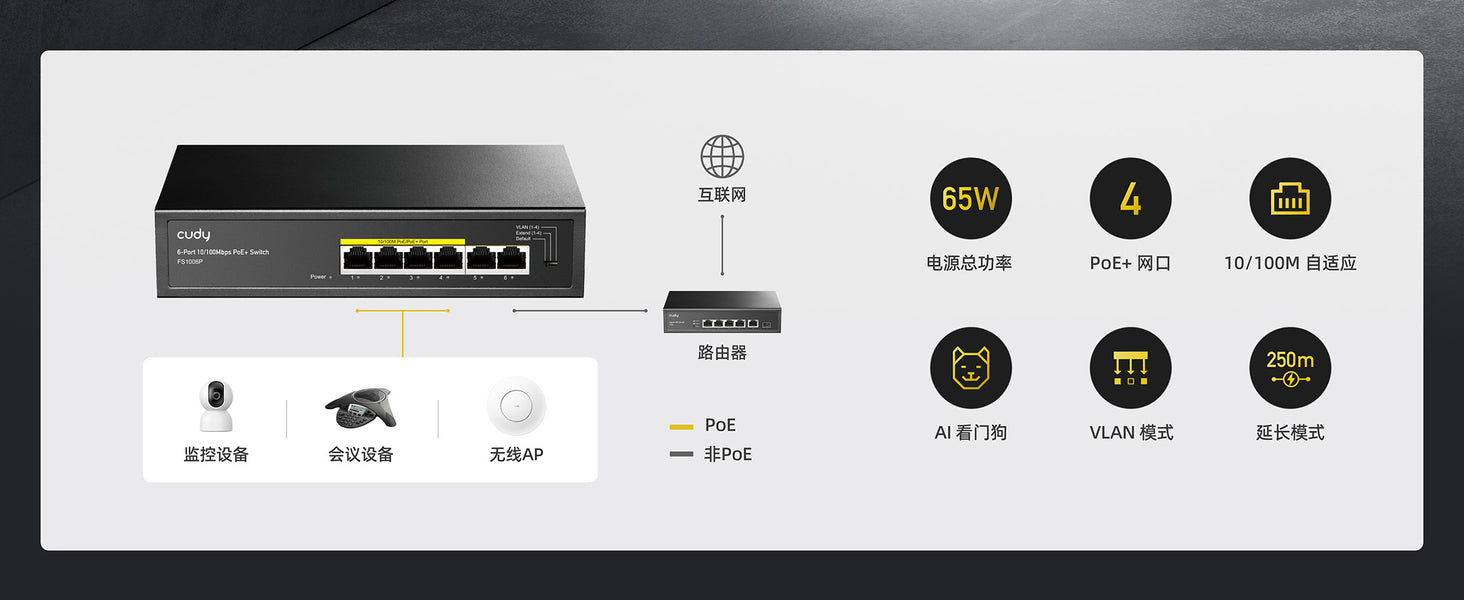

    A 6-FE PoE switch with a 65W power supply and a silent cooling system.

    • 4× 百兆口，支持 802.3at/af 模式 A PoE
    • 2× 上行百兆口
    • 65W电源
    • Default/VLAN/Extend 模式
    • VLAN 或扩展模式下的看门狗
    • Desktop Installation
    • 200×118×44 mm
    查看完整详细信息
    型号版本
    型号版本 FS1006P 3.0
    Interfaces
    Interfaces 10/100 Mbps RJ45 Ports 2
    10/100 Mbps RJ45 PoE Ports 4
    Max Power on a Single PoE Port 30W
    PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.
    Extend Mode Ports #1~#4

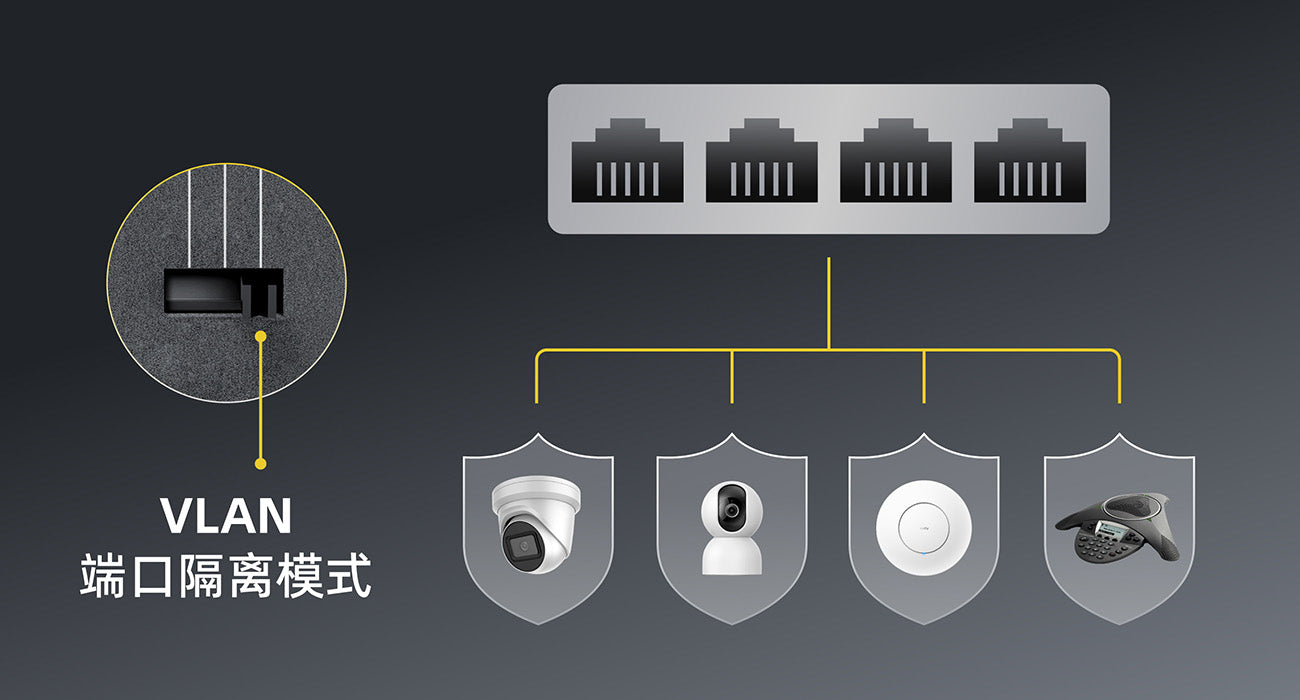

    VLAN Mode Ports #1~#4
    LED
    • Power
    • Link/ACT of Each Ethernet Port
    Power Input AC Inlet
    Physical Buttons Default/Extend/VLAN DIP Switch
    Performance
    Performance Copper Speed and Distance
    • Cat. 3 or higher cable: 100 meters at 10 Mbps
    • Cat. 5 or higher cable: 100 meters at 100 Mbps
    • Cat. 5e or higher cable: 250 meters at 10 Mbps

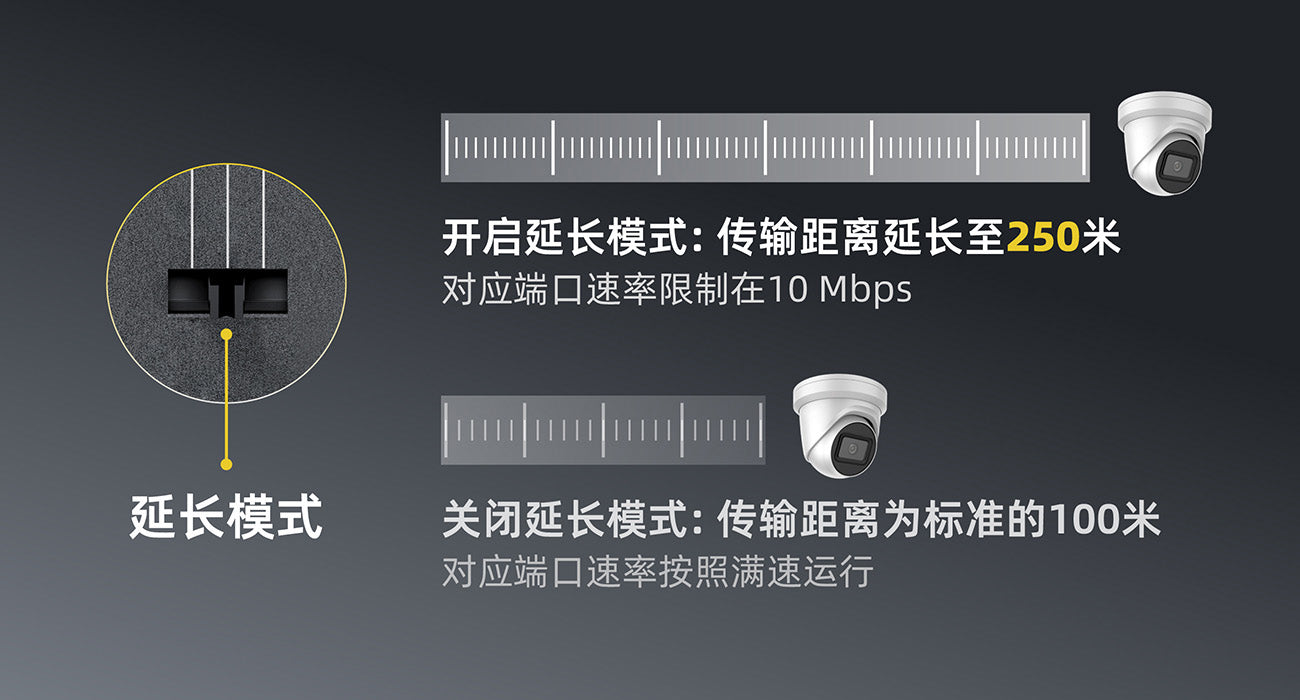

    Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports.
    MAC Address Table 2048
    Max Switching Capacity 1.2 Gbps
    Packet Buffer 768 Kbit
    Power
    Power Power Methods AC
    AC 100-240V 50/60Hz
    Power Supply 65W
    Max Power Excluding PoE 1W
    Switching
    Switching 802.3 Protocols
    • 802.3i 10BASE-T
    • 802.3u 100BASE-TX
    • 802.3x Flow Control
    • 802.3af PoE
    • 802.3at PoE
    Reliability
    Reliability Grounding Methods
    • Three-Prong Plug
    • Grounding Point
    ESD Contact: 6kV
    Air: 8kV
    Lightning/Surge Protection RJ45: CM 4kV
    Power: DM 2kV, CM 4kV
    Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
    Storage Temperature: -40~70℃ (-40~158 ℉)
    Operating Humidity: 10~90% non-condensing
    Storage Humidity: 10~95% non-condensing
    Mechanical
    Mechanical Dimension 200×118×44 mm
    7.87×4.65×1.73 inches
    Casing Material Metal
    Installation
    • Desktop
    • Rackmount via Brackets (Brackets not included in the box)
    Package Content
    Package Content
    • FS1006P
    • Power Cord
    • Installation Guide
