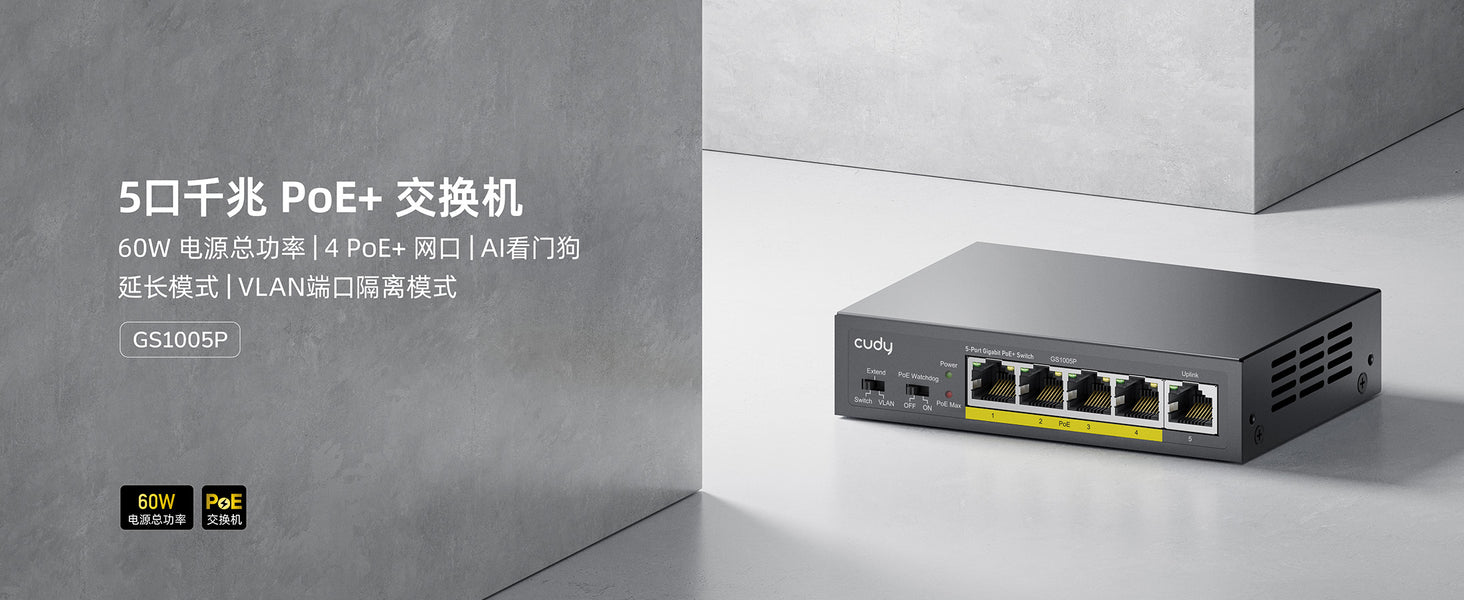

5口千兆 PoE+ 交换机

5口千兆 PoE+ 交换机, GS1005P 2.0

GS1005P 2.0

带有 65W 电源和静音冷却系统的壁挂式 PoE 交换机。

  • 4× 千兆口，支持 802.3at/af 模式 A PoE
  • 1× 上行千兆以太网
  • 60W Power Supply
  • Default/VLAN/Extend 模式
  • Watchdog On/Off
  • 桌面安装/壁挂安装
  • 119×85×28 mm
查看完整详细信息
型号版本
型号版本 GS1005P 2.0
Interfaces
Interfaces Gigabit RJ45 Ports 1
Gigabit RJ45 PoE Ports 4
Max Power on a Single PoE Port 30W
PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards. Intelligent Power Management: Automatically disconnect the lastly powered device when power exceeds budget.
Extend Mode Ports #1~#4
VLAN Mode Ports #1~#4
LED
  • Power
  • PoE Status of Each PoE Port
  • Link/ACT of Each Ethernet Port
  • PoE Max Status
Power Input DC Jack
Physical Buttons
  • VLAN/Default/Extend DIP Switch
  • PoE Watchdog On/Off
Physical Buttons Note The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Performance
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports.
MAC Address Table 2048
Max Switching Capacity 10 Gbps
Jumbo Frame 15 KB
Packet Buffer 3 Mbit
Power
Power Power Methods DC
DC 54V 1.11A
AC Input: 100 V - 240 V, 50 Hz
Output: 54 V, 1.11 A
Power Supply 60W
Max Power Excluding PoE 5W
Switching
Switching 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3x Flow Control
  • 802.3af PoE
  • 802.3at PoE
L2 Features
  • IGMP Snooping
  • Loop Prevention
  • Loop Detection
Reliability
Reliability Grounding Methods Three-Prong Plug
Lightning/Surge Protection RJ45: CM 4kV
Power: DM 2kV, CM 4kV
ESD Contact Protection 6kV
ESD Air Protection 8kV
Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing
Mechanical
Mechanical Dimension 119×85×28 mm
4.69×3.35×1.1 inches
Product Weight 253.0 g (8.92 oz.)
Casing Material Metal
Installation
  • Desktop
  • Wall-mount
Package Content
Package Content
  • GS1005P
  • Power Adapter
  • Power Cord
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 165×123×60 mm
6.5×4.84×2.36 inches
Retail Package Weight EU: 890.0 g (31.39 oz.)
Carton Net Weight EU: 17.8 kg (39.24 lbs)
Carton Gross Weight EU: 18.5 kg (40.79 lbs)
Carton Dimension 37.6×26.4×33.8 cm
14.8×10.39×13.31 inches
